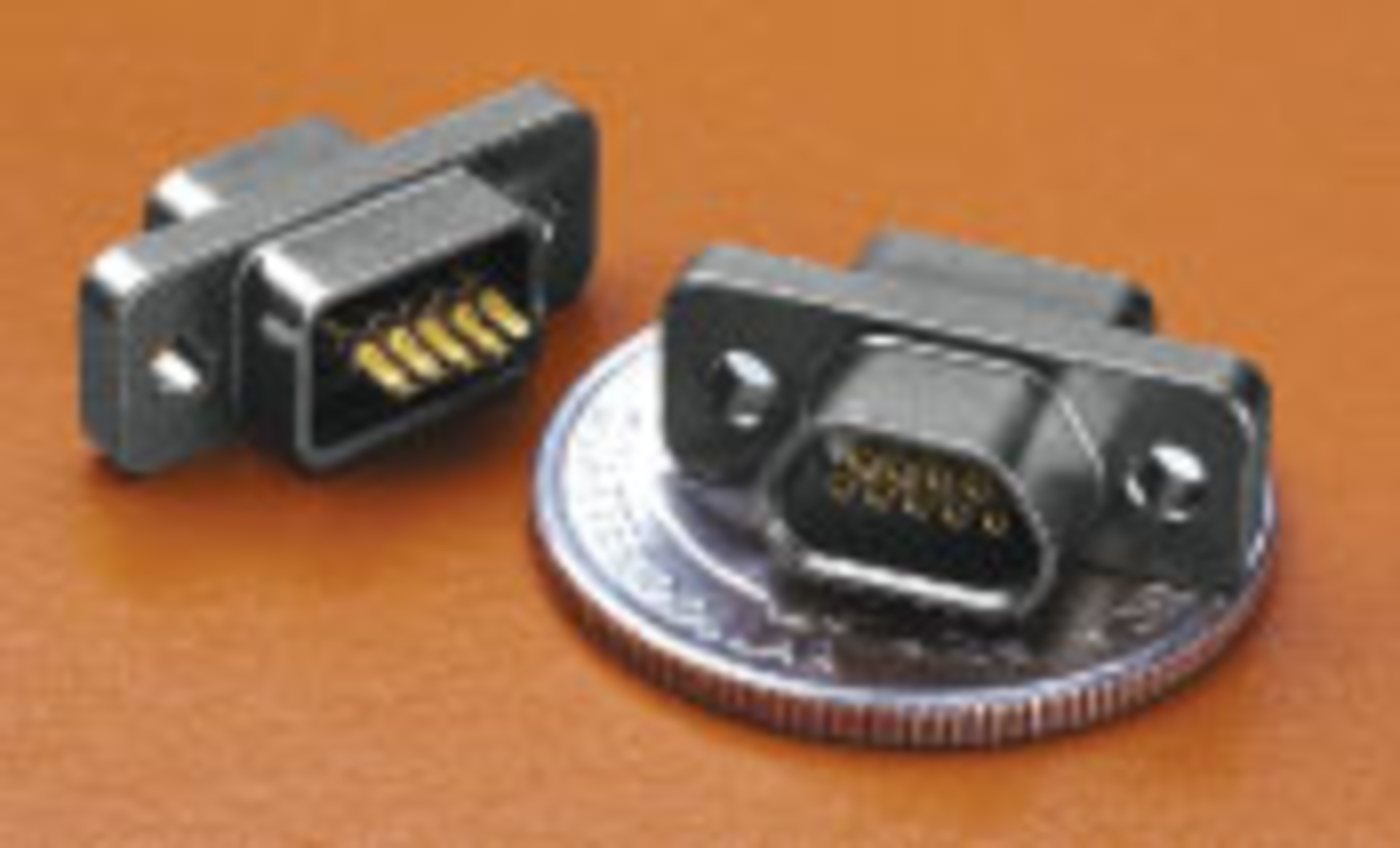

A line of smaller, lightweight EMI filtered micro D-subminiature connectors is built to MIL-DTL-83513 and available fully RoHS compliant. The connectors have nine to 37 contacts and a variety of styles, terminations, and mounting options. They offer capacitance values to 4,700 pF, can be specified for selective line filtering, and provide an environmentally sealed contact area once mated. Micro D-sub connectors have an operating voltage to 100 VDC, dielectric withstanding voltage to 300 VDC, current rating of 3 A, and insulation resistance of 5 GΩ @ 100 VDC.
