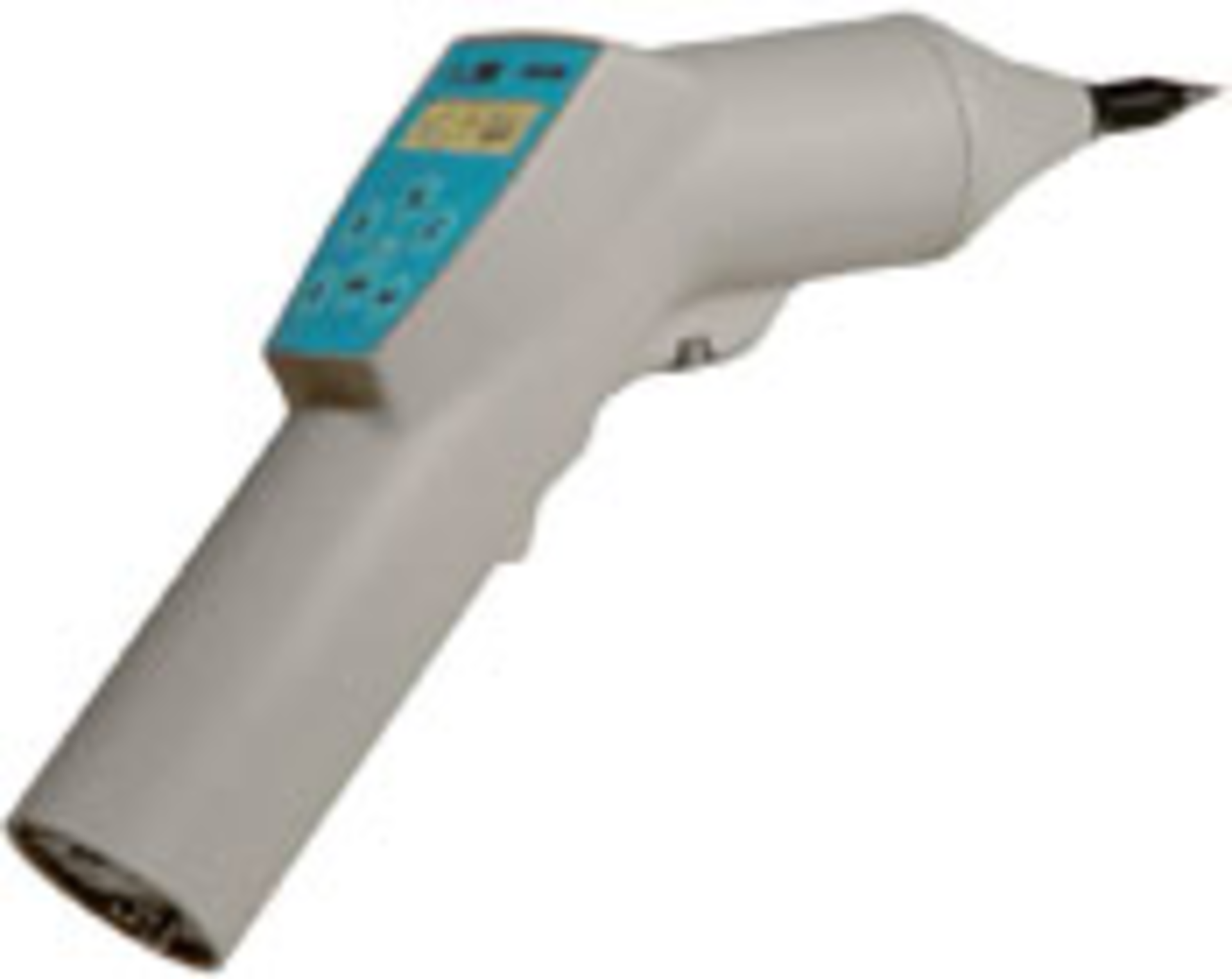

ESD Simulator

ESD 3000 is a battery-powered hand-held ESD simulator configurable for 30-kV or 16-kV applications or both. The lightweight unit provides intuitive single-handed operation, a backlit LCD showing test parameters, and full automation including nine on-board nonvolatile memory locations to store test routines. Key features include electronic polarity switching, a current-sensing pulse counter, and preprogrammed test levels to the standard associated with a range of interchangeable R-C discharge modules. The voltage can be programmed to step up or down for automated testing at specific test levels. HV Technologies
