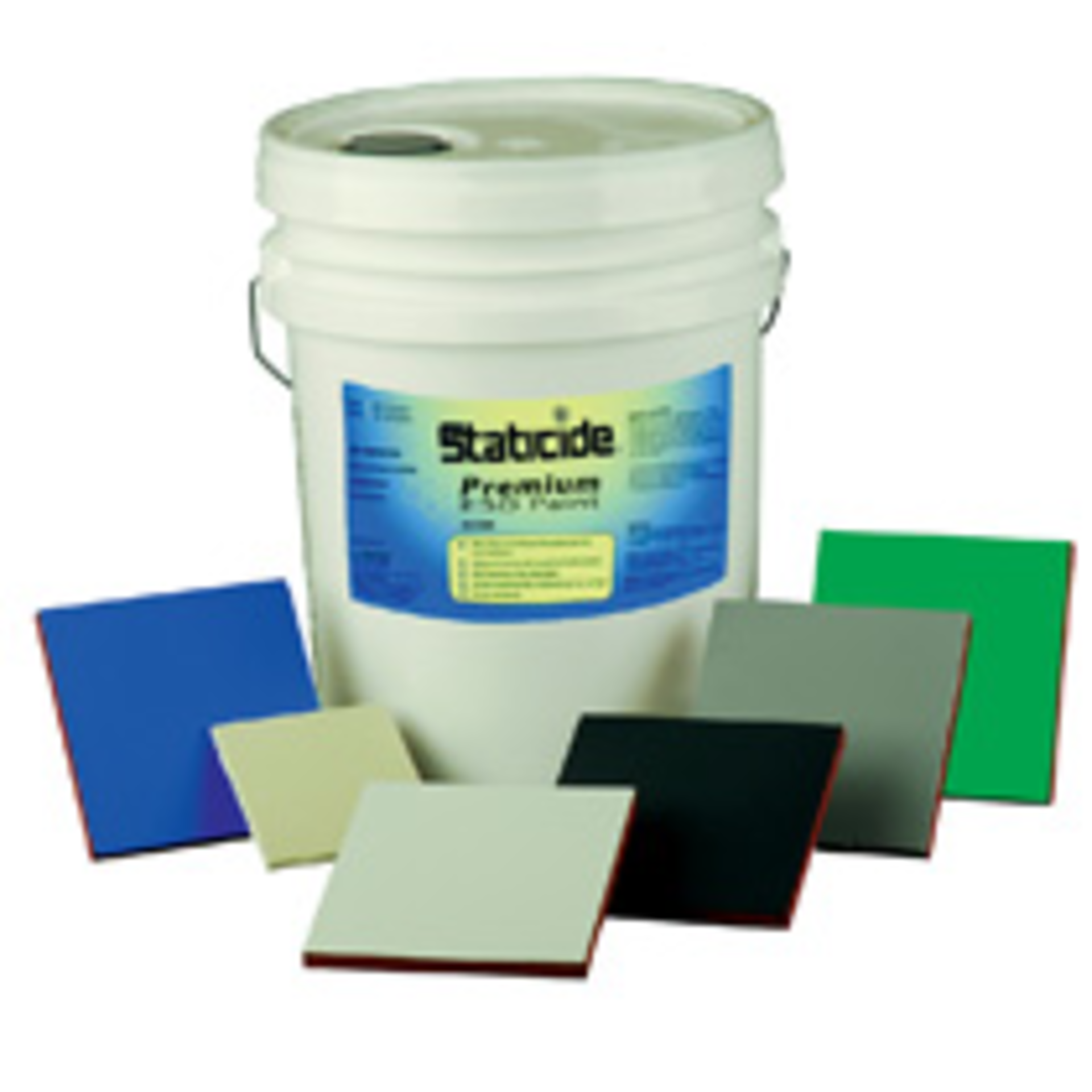

Static-Dissipative Floor Paint
5700 Staticide® Premium ESD Paint provides static control per ESDA/ANSI S20.20-2007, durability, and an assortment of colors including white, light gray, blue, green, and beige. The single-part, water-based polyurethane coating is designed for interior concrete floors in electronics manufacturing, assembly, and ESD-protected areas. The average surface resistivity is 106 to 108 ?/sq. The nonhazardous, nonflammable, biodegradable formula does not contain substances on the REACH SvHC list or in the RoHS Directive 2002/95/EC. VOC is less than 3 lb/gallon. Painted surfaces can be maintained with a mild neutral cleaner.
Immunity Test System
The CTS Series is a compliance test system for EN IEC 1000-3-2 including Amendment 14, EN IEC 1000-3-3, and several EN IEC 1000-4 AC immunity tests. It consists of an AC power source, a power analysis conditioning system, and a PC-based data acquisition system and features the company’s iX or MX Series Controllers. The CTS system is available in single-phase (1,250 VA to 5,000 VA) and three-phase (15 kVA or 18.5 A per phase at 230 V) configurations. Windows-based CTS software performs the IEC tests and generates test reports. Data files are stored on disk for post-test analysis.
Automotive Varistors
The TransGuard Automotive Series of compact multilayer radial leaded varistors provides nonlinear, bidirectional transient voltage protection in the on-state and EMI/RFI attenuation in the off-state. The RoHS-compliant zinc oxide-based ceramic semiconductor devices are qualified to AEC Q200 and feature an operating temperature of 150°C and a 25-kV ESD rating. They can be used in down-hole drilling applications and in several harsh environments in addition to automotive.
Flooring and Shelving Panels
ResinDek® panels with ESD finish provide average point-to-point resistance of 6.6 × 106 ?, point-to-ground resistance of 7.8 × 106 ?, and decay rate from 5,000 V to <50 V in less than 0.50 s. They comply with ANSI/ESD S7.1-2005: Resistive Characterization of Materials–Floor Materials; S20.20-2007: Protection of Electrical and Electronic Parts, Assemblies and Equipment; and STM97.1-2006:Floor Materials and Footwear-Resistance. The tongue-and-groove panels, composed of wood fibers, various resins, and proprietary coatings, support foot traffic and pallet jack live and dead loads from 1,250 to 8,000 lb and can be used for mezzanine floors, shelving systems, and workstations.
Custom EMI Filters
Custom EMI filters can support conducted and radiated emissions and susceptibility, power quality, lightning protection, and ESD in accordance with MIL-STD-461, DO160, and other specifications. They can be built for DC applications up to 270 VDC, AC applications up to 480 VAC (single-phase and three-phase), and current levels up to 100 A and beyond.
Military Transition Modules
Transition Modules for military shelters combine EMI filtering and transient protection for hard-wired communication links and COTS interfaces. They incorporate high-frequency EMI filtering and TVS lightning and transient energy protection to provide filtered DC power, RS-232, and Ethernet communications. The modules support up to 5 Gb/s Ethernet transmission speed through the company’s filtered RJ45 connectors and provide 0 to 5 A DC current, 0 to 500 VDC, a typical insertion loss of >45 dB, and D-sub filtering of 10 pF to 47,000 pF per line. They meet MIL-STD-461 and RTCA-DO-160 requirements for EMI/EMC.
Static Eliminator
The Long Super Ion Air Knife™ neutralizes static electricity while blowing away dust and particulates from printed surfaces, paper, plastics, and 3-D shapes up to 96” across and up to 20 feet away. The ionizer uses approximately 5 psig to move high volumes of compressed air, and the force can be adjusted. The ion air knives are available in 60”, 72”, 84”, and 96” lengths; there are no moving parts. A factory-installed plumbing kit is available for connecting to a plant’s compressed air system. The shockless design is UL component-recognized to U.S. and Canadian safety standards.
Conductive Corrugated Containers
Conductive corrugated plastic containers made of ESD-safe materials come in more than 6,000 sizes, 20 styles, and several colors. The list of styles includes hopper-front dividable containers, basic style hopper-front containers, stackable hopper-front containers, straight-wall dividable containers, nestable containers, horizontal carousel containers, heavy-duty stackable containers, cases, delivery containers, and pizza-style fold-together containers. Partitions that can help protect products and maximize storage density are available. The company also can custom-configure most containers by size, style, and color and with foam cushioning to help prevent product damage in transit.
Conductive Foam Gasketing
CFS Shielding Material for die-cut finishing operations is manufactured of nickel-copper polyurethane foam layered between two pieces of conductive polyester fabric. The gaskets offer a typical shielding effectiveness of 60 dB from 10 MHz to 3 GHz. The conductive foam exhibits a compression load of 2.1 psi at 30% compression and has an operational temperature range from -40°F to +156°F. The material comes in 0.04”, 0.06”, 0.09”, and 0.125” thicknesses. A standard conductive, pressure-sensitive adhesive facilitates installation.
Conductive Epoxy Adhesive
EP76M-1 is a two-component, nickel-filled conductive epoxy adhesive featuring a one-to-one mix ratio by weight or volume. Volume resistivity is 5 to 10 ohm-cm. The low-outgassing adhesive features a thermal conductivity of 8 to 9 BTU/in./ft²/hr/°F and a tensile shear strength of 2,000 psi when cured at room temperature. EP76M-1 is thermal shock and chemical resistant, exhibits high bond strength to similar and dissimilar substrates, and provides a thermal expansion coefficient of 30 µin./in./°C. It has a service operating temperature range of -60°F to +250°F, is 100% reactive, and does not contain diluents or solvents.
Feedthrough Filters
The compact and rugged HPR High-Current Feedthrough Filters operate at current levels exceeding 400 A and voltages to 500 VDC. Available capacitance values provide significant insertion loss at 1 kHz and maintain performance to above 1 GHz.
Linear Power RF Amplifier
The 5225 is a 200-W broadband amplifier that covers the 80 to 1,000-MHz frequency range. The 3U unit uses Class A linear power devices that provide a typical +59-dBm 3rd order intercept point, high gain, and wide dynamic range. The 5225 ships with either rear- or front-panel N-type RF connectors, and both versions have Ethernet, IEEE 488, and RS-232 interface capabilities.
Engineered ESD Tapes
A family of single-coated, linered ESD tapes offers surface resistivity from 105 to 109 ?/sq, tested per ANSI/ESD STM.11.11-2006, and high static dissipation for triboelectric and induced charges and charges resulting from capacitive charge coupling. The REACH- and RoHS-compliant tapes, developed using the company’s TriboGard technology, address specialty die-cut converter and OEM applications in the electronics, aerospace, automotive, and medical industries. A dual-function ESD and halogen-free flame-retardant option and custom constructions also are available.
Shielding Material
Protect Stat 100M is a metal-in, five-layer, abrasion-resistant material offering electrostatic shielding properties. It provides a Faraday Cage for protecting PCBs and subassemblies and meets MIL-PRF-81705 Type III specifications. The material is free of primary amines, amides, and silicone and resists punctures and tears. It is produced in rolls, sheets, tubes, or bags; custom bags also are available.
Sine Wave Filters
The three-phase FMAC SINE and FMAC SINE DCL Sine Wave Filters convert output voltage waveforms produced by pulse width modulation frequency converters into low distortion sine waveforms for motor and power transformation applications. The filters work in 500 VAC installations with currents upwards of 4 A. The operating voltage is 3 x 288/500 VAC, and rated currents range from 4 to 16 A. Both filters are designed for use in motors with power from 1.5 to 7.5 kW, frequency of 0 to 200 Hz, and switching frequency of 2 to 20 kHz. The filters support the use of long, lightweight, unshielded motor cables.
