The much-anticipated new Apple Watch has the lowest hardware costs compared to retail price of any Apple phone IHS Technology has researched, according to a preliminary estimate by IHS and its Teardown Mobile Handsets Intelligence Service. The teardown of the Apple Watch Sport by IHS Technology estimates that the actual hardware costs are only about 24% of the manufacturer’s suggested retail price (MSRP). Estimated hardware cost to MSRP ratios for other Apple products reviewed by IHS are in the range of 29 to 38%.

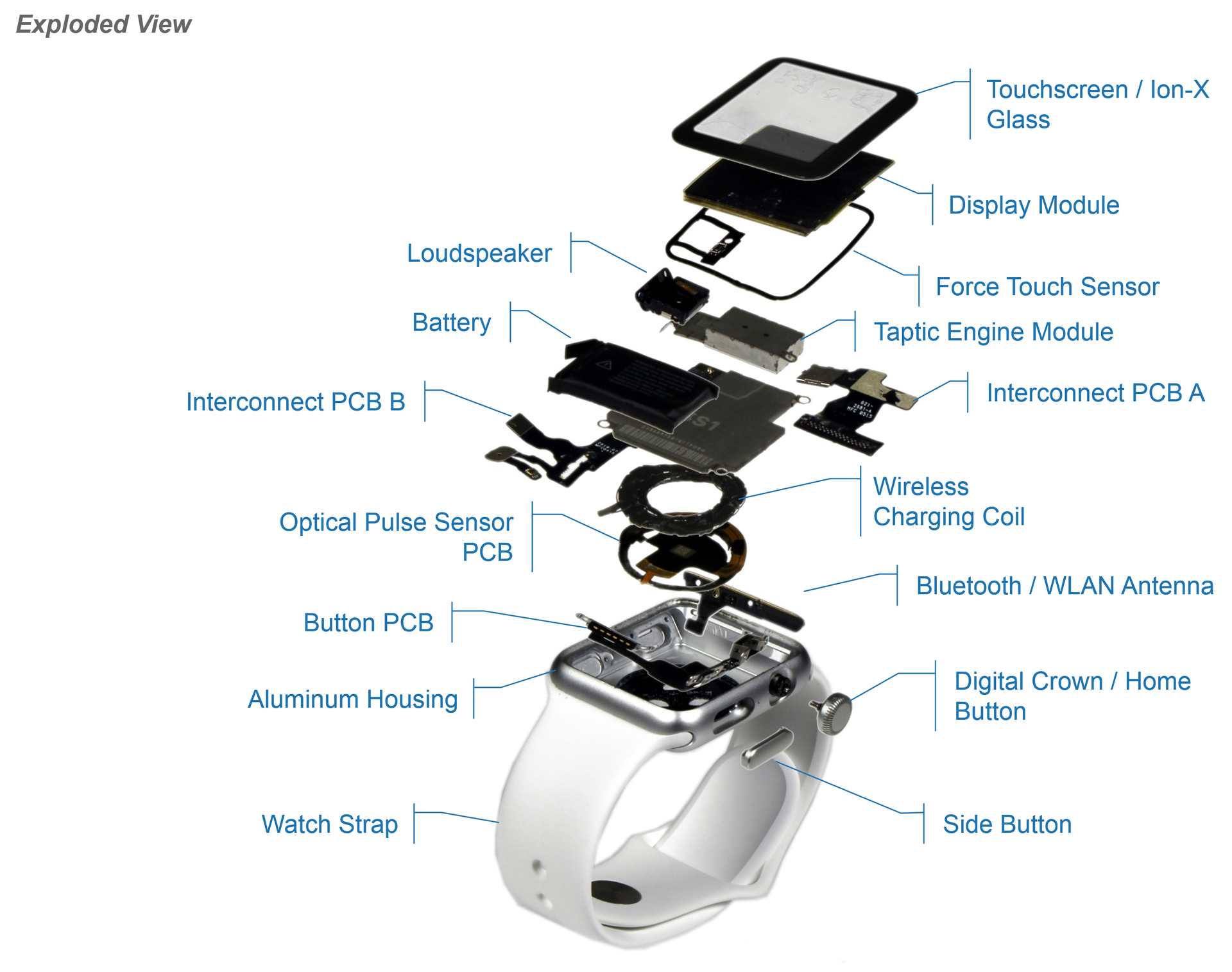

The teardown of the Apple Watch Sport 38 mm by IHS Technology shows a bill of materials of $81.20 with the cost of production rising to $83.70 when the $2.50 manufacturing expense is added. The retail price of the Apple Watch Sport 38 mm is $349.00. The IHS Technology analysis does not include logistics, amortized capital expenses, overhead, SG&A, R&D, software, IP licensing, and other variables throughout the supply chain such as the EMS provider.
“It is fairly typical for a first-generation product rollout to have a higher retail price versus hardware cost,” said Kevin Keller, senior principal analyst-materials and cost benchmarking services for IHS Technology. “While retail prices always tend to decrease over time, the ratio for the Apple Watch is lower than what we saw for the iPhone 6 Plus and other new Apple products, and could be of great benefit to Apple’s bottom line if sales match the interest the Apple Watch has generated.”
New features and manufacturing methods
There are several new features and manufacturing methods used in the Apple Watch Sport, including a pulse oximeter, force touch sensor, “taptic engine” feedback, encapsulated modular printed circuit board (PCB) assembly, and stacked-die integrated circuits (IC).
“While these features have been promoted by Apple and none are necessarily revelatory,” Keller said, “it is noteworthy that many features are appearing for the first time—in combination—in one device. It could be a bellwether for other future Apple products.”
The taptic engine built into the Apple Watch, and integrated with the loudspeaker, contains a linear actuator that provides haptic feedback and vibrations. “We found that the device consumes a substantial amount of space inside the watch, and we would expect further miniaturization of this function in future iterations of the product,” Keller said.
The preliminary results of the teardown do not show any big surprises in the IC content; all of the manufacturers identified so far were expected. The Apple Watch NAND memory is a Toshiba Flash 8GB, and DRAM is a Micron SDRAM 512MB. Broadcom, STMicro, Maxim, Analog Devices, and NXP are used for connectivity and interface. One noteworthy change is a shift from Invensense to STMicro for the accelerometer/gyroscope.
“The display is LG’s plastic OLED display, and the touchscreen overlay module is a TPK Slim GG utilizing their ‘Force Touch’ technology,” Keller said. “Force Touch was recently incorporated into the latest MacBook and is expected to be found in the next iPhone generation.”
Apple “Unibody” tradition continued
The fabrication of the enclosure continues the Apple “Unibody” tradition of precision machining from a single block of aluminum. Apple is now extending this design philosophy into a highly miniaturized realm, mating the legacy of precision watchmaking with Apple’s specialized manufacturing practices. As with its previous products, Apple has taken fabrication techniques—once typically restricted to low-volume manufacturing and prototyping –and scaled them into a high-volume production environment.
‘”The encapsulation of the entire printed circuit board assembly into a single monolithic module is especially noteworthy,” Keller said. “Whereas many products might have some form of semi-flexible encapsulant applied to the board for protection, shock, and vibration purposes, Apple has effectively created one large IC out of the entire assembly. This encapsulation is done by encasing the board in the same plastic/epoxy material used for conventional ICs. Indeed, many of the devices found inside the assembly are already encapsulated, effectively creating an IC-within-an-IC affair.
“To provide electromagnetic shielding, the encapsulated PCB assembly is further treated with a metalized coating deposited over the surface,” Keller added. “This shielding process is used in place of conventional stamped sheet metal shielding, saving a significant amount of space, as well as cutting down slightly on weight.”
Potential boost for wireless charging
The Apple Watch is equipped with inductive charging technology and is being shipped with a wireless charger, based on Apple’s own proprietary MagSafe charging technology.
“It has been speculated that the Apple Watch could be compatible with the Wireless Power Consortium’s (WPC) Qi wireless charging specification,” said Vicky Yussuff, analyst for power supplies and wireless power for IHS. “AppleInsider recently shared a video which appears to show the Apple Watch MagSafe charger being used to charge the Moto 360 smart watch. This would suggest that Apple’s charger is Qi-compatible.
“Apple has not been announced as a member of the WPC or even a supporter of the consortium, so it is unlikely that they have produced a ‘certified’ Qi product. However, the Qi specification is an open standard meaning it is still possible for Apple to build products which are compatible to the specification. This could be the case with the Apple Watch MagSafe charger,” Yussuff said. “Although it cannot be verified if both the Moto 360 smartwatch and Magsafe wireless charger used in the video were both un-modified ‘off the shelf’ products, this could potentially be another boost for the wireless charging industry looking to increase interoperability.”
The Apple Watch battery appears to be somewhat simpler to replace than the batteries in many other Apple products. As long as the display can be carefully removed, the battery is attached with a simple snap-on connector.
IHS Technology will conduct a free webinar about its teardown of the Apple Watch Sport on May 5, 2015 at 12:00 pm EDT. For more information about the webinar and the Apple Watch teardown, visit https://technology.ihs.com/wearables.
