Exploring Innovative Flash Test Techniques

One of the key technologies contributing to the record development of mobile communications and consumer mass storage is nonvolatile memory (NVM). Demand for such memory devices, particularly in portable products, seems unlimited due to their unique capability to retain data even when powered off, unlike traditional memory products found in PCs.

The most noticeable growth within the NVM market will be in flash memory for consumer and communications products—primarily digital cameras, MP3 players, personal digital assistants, and wireless communications. These diverse end-use markets will push flash memory performance upwards in terms of density and speed.

Flash memory generally is of two types: NOR and NAND. Named for the architectures they use, each functions differently. NOR flash excels in retrieving a specific piece of data, NAND flash in returning large blocks of data.

A good analogy is a phone book. If a NOR and a NAND device were loaded with identical information from a phone book, the NOR device would produce a specific phone number each time it was accessed. In contrast, a NAND device would produce entire sections of a phone book at once.

In the real world, NOR devices are used in applications such as cellular phones where retrieval of small specific pieces of information is needed. NAND devices, on the other hand, are used in MP3 players and digital cameras that require the transfer of large multimedia files.

Flash memory has been particularly successful because of its nonvolatile nature, low cost per bit, and high functionality. Until recently, however, flash memories have been relatively slow and simple devices. As NVM end-use applications continue to grow and diversify through 2003, flash devices will require more complex synchronous interfaces to fulfill their increasing role in data storage.

Flash-memory performance specifications will need to match those of the devices with which they interface. Test requirements for these devices will raise the maximum operating frequency to 200 MHz, require overall timing accuracy of <±500 ps, and necessitate logic test features, such as deep vector memories, switching between algorithmic pattern generators (APGs), and on-the-fly vector sequencing. These trends are based on data from the International Technology Roadmap for Semiconductors 1999 Edition (Figure 1).

Figure 1. Roadmap of Flash-Memory Test Requirements

Frequency 66 MHz 80 MHz 100 MHz 125 MHz 133 MHz 166 MHz Parallelism 32 64 64 64 64 64 OTA 1 ns 0.75 ns 0.6 ns 0.6 ns 0.5 ns 0.5 ns Vpp Voltage 1.3~13.0 0.6~10.0 0.6~10.0 0.6~10.0 0.6~10.0 0.6~10.0 Vcc Voltage 1.3~5.5 0.6~5.5 0.6~5.5 0.6~5.5 0.6~3.3 0.6~3.3 Data Width 16 32 32 32 32 32 Vector Depth 128k 1M 1M 1M 1M 1M Volume Density 64M 64M 128M 128M 256M 256M Lead Density 256M 512M 512M 1,024M 1,024M 2,048M $/pin $1.15k $1.0k $850 $725 $610 $525 2000 2001 2002 2003 2004 2005

Data-storage-intensive consumer electronic end-market applications are propelling the need for higher-density memory devices and bringing along new developments. NAND density is expected to become 10 times more than that of traditional NOR by 2003 (Figure 2).

All of these flash-technology trends mean one thing: today’s memory testers do not have the performance needed to test the devices that will be available in as little as three years.

Compounding the flash manufacturer’s problem is the continuing price erosion as flash memory becomes more of a commodity product. Although prices have been rising over the last several months because of a supercharged flash market, most analysts project average selling prices of flash devices to trend downward at a rate of approximately 26% per year on a dollars/Mbit basis. As a result, flash vendors will continue to pressure test vendors to lower the cost of test even as the performance and functionality continue to increase.

Flash Testing Techniques

One trend to lower the cost of test (CoT) involves moving at-speed tests to wafer sort. By moving traditionally final test to wafer sort, device manufacturers can reduce the overall cost of test.

CoT can be lowered further through the migration of flash manufacturing to 300-mm wafers, which allows greater parallelism without sacrificing probing efficiency. Because of the asynchronous nature of flash programming and redundancy repair, the opportunity for greater parallelism must be coupled to a tester-per-site architecture, which accommodates independent tester resources for each device under test (DUT) (Figure 3).

The Tester-Per-Site™ architecture is a proven method for testing multiple devices by providing all of the resources of fully independent testers for each DUT. When NVM is tested in a conventional shared-resource test architecture, the slowest memory cell will delay a parallel test operation, and throughput will be reduced. The Tester-Per-Site architecture eliminates this problem.

Increasing parallelism has forced test vendors to push traditional PCB technologies and power-management techniques to the limit to fit more sites and channels into a smaller test head. While several factors are driving up PCB cost, the most significant involves the increasing number of layers being used in multilayer PCBs to meet test-head interconnection needs.

On a conventional PCB, tracks on different layers are connected by plated-through via holes. As designs have become more and more complex, PCB designers have just a few options: reduce the size of tracks and vias, increase the number of layers, and use blind or buried vias.

Because the vias in conventional PCBs are drilled mechanically, the first option is limited by the fact that the smallest practical drill size is about 0.2 mm. However, increasing the number of layers makes the board even more complex, difficult to manufacture, expensive, and less reliable.

Micro-Via Board

One technology to achieve the required system densities is the micro-via board. It contains a multilayer core of high-temperature FR4 board sandwiched between two micro-via layers. The micro-via layers typically consist of a 2.5-mil-thick layer of resin-coated copper with 3-mil-dia laser-drilled micro-vias.

Typically, the smallest features on the board are 3-mil-wide lines with 4-mil spaces. By replacing the conventional drilling operation with a laser-etching process, thousands of micro-via holes can be simultaneously produced without debris generation, drill-bit run-out, drill-bit breakage, or smear.

The Functional Implementation

To meet the challenge of integrating more than 32 sites of 64 channels into a single test head, it is necessary to focus on compact and efficient ASICs.

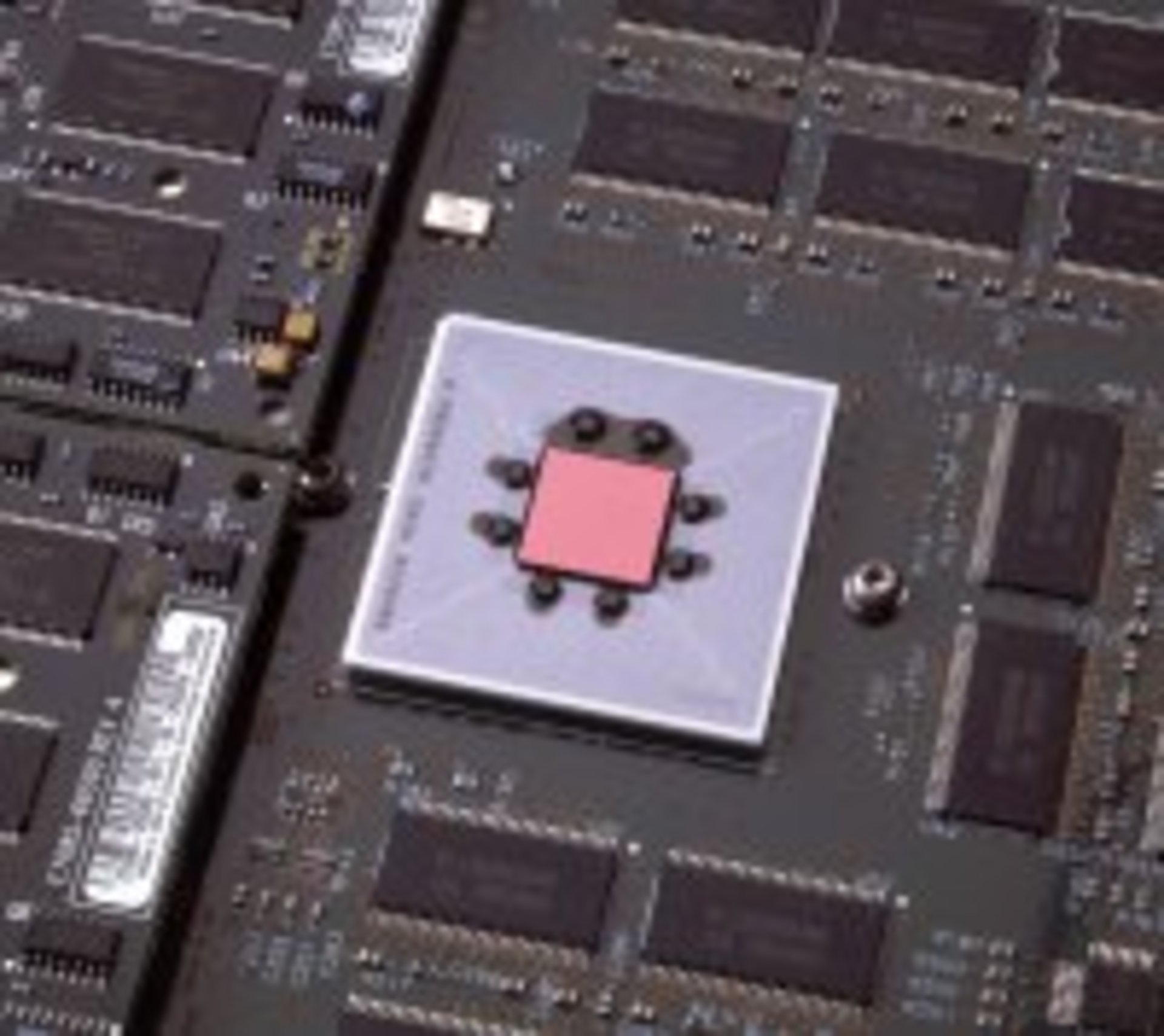

An excellent example of the capability of ASIC technology is the APG. A key component of a flash memory tester, the APG is responsible for creating data patterns to test a flash device. Traditionally, the APG resides on a full PCB assembly. The reduction in size is the immediate benefit of integrating the APG into a single ASIC chip (Figure 4, right).

There are additional benefits of moving to an ASIC-based design. From a performance standpoint, it becomes possible to achieve clock speeds of greater than 100 MHz, allowing a wider range of devices to be tested. In addition, single test sites now can be partitioned to test up to four devices in parallel, further increasing throughput and reducing CoT. More functions like scrambling, crossover, and branching can be achieved in a single clock cycle for more complex test programs. Finally, system reliability is improved due to fewer components.

Edge-timing generators are yet another good example of where migration to an ASIC-based design holds clear advantages. Similar to the APG, edge-timing generators will benefit from a reduction in size as well as an increase in functionality.

One of the most noticeable gains from this migration is the capability to generate timing resolutions of 20 ps. This timing is made possible partly by automatic temperature and supply voltage compensation that maintain temperature coefficients within very small amounts. Also, the use of stable, high-speed differential circuits allows signals to be transmitted without losing edge-placement accuracy.

Timing-generator ASICs have several features based on previous-generation designs. For example, timing-generator ASICs can support on-the-fly timing so that each edge can be reprogrammed with each tester cycle.

All timing circuits are automatically calibrated at each delay for linearity. Finally, a new set of programming features allows tests to be completed in fewer cycles, further reducing overall test cost.

Bringing It All Together

Flash-memory devices in their end-use application only drive a few inches of transmission line to the microprocessor. The edge rate of the flash-memory I/Os and their drive current require a tester interface with gigahertz bandwidth and low effective capacitance.

Agilent Technologies has implemented a DUT interface that directly docks the pin electronics to a wafer prober or package handler with less than 1 ft of transmission line between the DUT and the pin driver (Figure 5, left). With up to 36 test sites, the user has more flexibility in probe-card layout or contactor design, such as 6 × 6, 9 × 4, 7 × 5, or 8 × 4.

Tomorrow’s Trend

Over the course of the next five years, testing flash memories will need higher-frequency testers with more logic capability to handle the complex interfaces needed for communications and digital data-storage appliances. This, combined with the commodity nature of the memory business, will require testers not only with higher functionality, but also with higher density to control the CoT.

Flash-memory testers today must have tomorrow’s technology, including:

  • Tester-Per-Site architecture providing dedicated resources for each DUT to reduce overall test times compared to shared-resource architectures.
  • ASIC technology for highest throughput and reliability.
  • Advanced APGs to control all pin resources including a pin parametric measurement unit (PPMU), power supplies, and the I/O bus, resulting in higher functionality and lower overall test times.
  • New test methodologies such as at-speed tests at wafer sort to reduce final test cost.

About the Author

Vince Lopopolo is the market development manager for the NVM Test Group in the Semiconductor Test Division at Agilent Technologies. He has been with the company for 11 years, holding positions in applications, business development, and product marketing for digital test and memory test. Prior to joining Agilent Technologies, he had 12 years of experience in various positions in the semiconductor industry. Agilent Technologies, 5501 Stevens Creek Blvd., Santa Clara, CA 95051-7295, 408-553-2467, e-mail: [email protected].

Published by EE-Evaluation Engineering
All contents © 2000 Nelson Publishing Inc.
No reprint, distribution, or reuse in any medium is permitted
without the express written consent of the publisher.

October 2000
