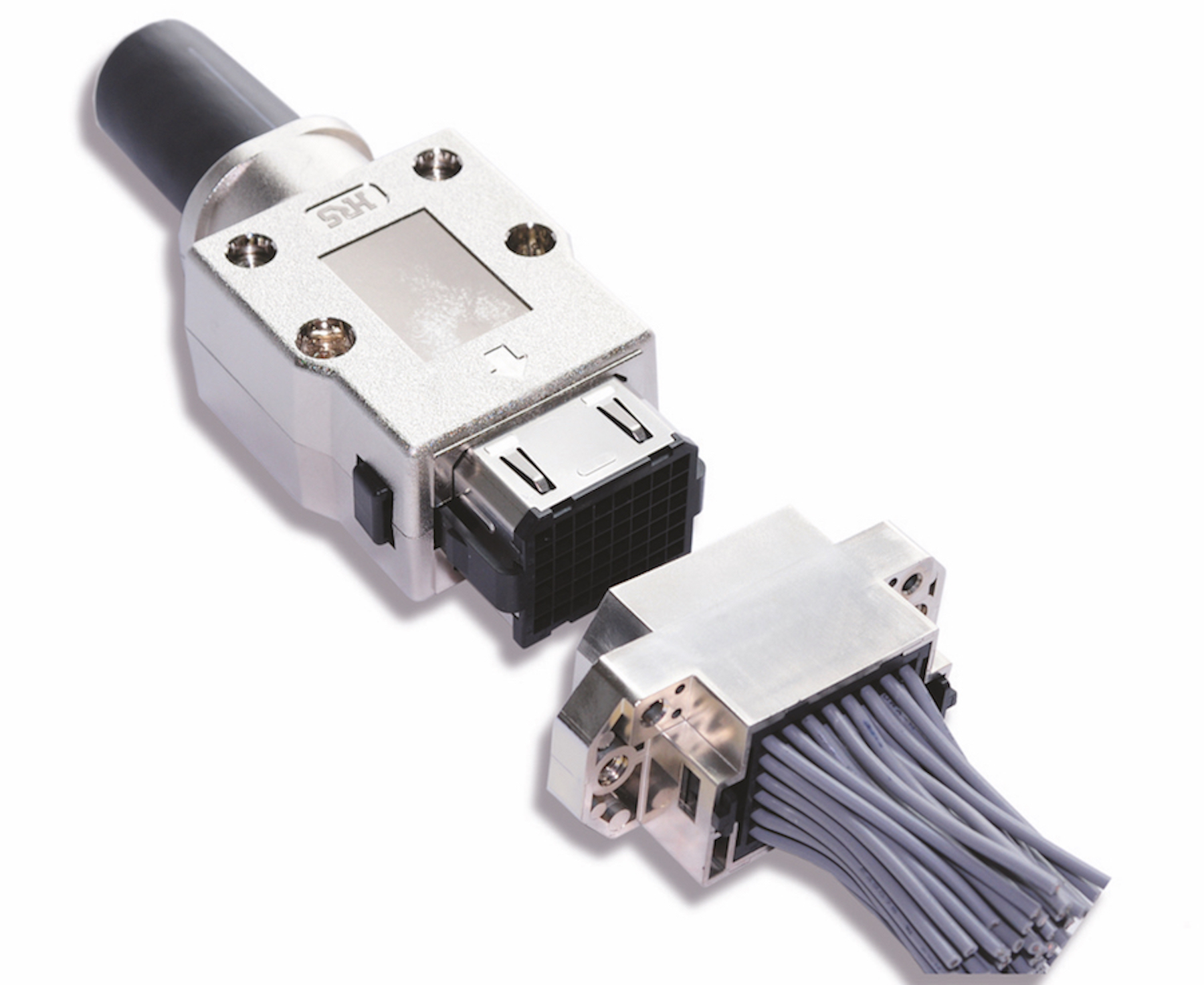

DOWNERS GROVE, IL. Hirose has launched a rugged high-power connector for industrial environments. Available in a lightweight plated plastic resin or a Zinc die-cast shell, the PQ50 Series connector is rated up to 600 V.
The PQ50 Series connector has a highly reliable 2-point contact design, which is beneficial when used in high-vibration industrial applications like robotics. The PQ50 Series is also suitable for precision processing machinery, nanotechnology manufacturing equipment, wafer/LCD carrier machines, and more.
The high-power connector is also available in a water-resistant version. The PQ50W is IP65-rated for harsh environment applications including assembly and food processing.
With a flexible coding-key system that prevents incorrect mating, the PQ50 Series connector supports in-line and panel-mount interconnect options. A reliable side latch, or interlock lever/cam, offers rugged locking options with a clear tactile click. The cable clamp design provides a pull strength of 98 N minimum.
Offering panel attachment flexibility and simplicity, the same female receptacle supports both front and rear attachment.
"Built for harsh environments, the high-power PQ50 Series connector was designed to meet the challenging demands of industrial machinery applications," said Bill Kysiak, product marketing manager for Hirose Electric USA. "The available options of the PQ50 Series connector provides the system designer maximum flexibility to meet the specific application requirements."
Ground contacts connect to the plates resin shell to quickly and easily provide secure grounding.
Rated at 600 V, the PQ50 supports NFPA79-compliant cables for industrial machinery, which ensures safeguards to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.
The PQ50 Series has an operating temperature range of -40 to +105°C and a rated current of 9 A per pin when all 20 pins are used or 19 A maximum in single-pin configurations.
