Innovations on making product features customizable are becoming more popular these days. Take AnDAPT for example, a fabless startup that unveiled its Multi-Rail Power Platform technology for On-Demand PMIC applications a few months back (see “Will PMIC On-Demand Replace Catalog Power Devices?“). Its online platform, called WebAmp, enables the consumer to configure the power-management integrated circuit (PMIC) based on desired specifications.
Fortunately, I got a hands-on experience during the trial period (without the physical AmP8DB1 board or AmPLink adapter). In my opinion, the GUI is friendly, but it lacks a verification method for tuning (i.e., the entered combination of specs). How would we know if it will perform as expected or if there are contradicting indications that yield odd behavior? Also, there’s not just one IP available, but many that cater to a differing number of channels and voltage requirements (each with their own price tag).
Every new emerging technology has the potential to overshadow its predecessor. In the case of AnDAPT’s AmP, it can replace conventional catalog power devices. You may wonder what the advantages and disadvantages are between catalog and on-demand PMICs. Are on-demand PMICs a better choice in terms of economy? How about performance? This will be the focus of the article, which aims to provide a more in-depth appraisal and comparison between the two. However, before sound personal judgment can be passed, it’s necessary to elaborate first on the PMIC development process, and then the AmP technology.
The IC Development Process
Many may have a bird’s eye view of this process. A slab of pure silicon sliced to ultra-thin wafers, then diced for fitting into small IC packages after patterns and structures have been etched. Sounds simple, but when the entire process is laid out, certain pivotal and unelidable procedures will surface. It will be evident that these factors could limit an on-demand solution unless workarounds are implemented.
Every product starts with a request or a need. A customer lists the specifications and the circuit designers meticulously review them (Fig. 1). The review gives insights on possible problems, enabling the designers to make preemptive decisions before they happen. After reaching a consensus on all stages, the IC design begins with a draft either from existing schematics or from scratch (which is riskier, more difficult, and more demanding of stringent tests/requirements). If the simulation results are okay (breakdown, ESD, etc.), then comes the schematic’s layout.

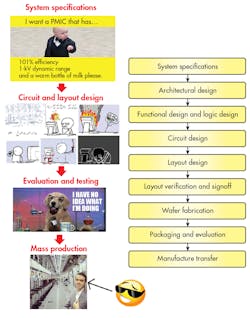

1. Here’s a flowchart of a typical IC development process (right).
The final GDS file undergoes many checking runs, too, both visually and through verification utilities. Some common examples of such tests include a DRC (design rule check), MSC (metal stress check), and LVS (layout vs. schematic), to name a few.
What follows consumes most of the cost and time in IC development. Manufacture of samples for design verification and evaluation is expensive, but it assures quality and compliance with all of the customer’s requirements. Actual testing can take time based on differences between simulation and evaluation results. At worst, the process can reset back to the circuit design phase. A lot of effort is poured into this stage, because slip-ups can trigger a domino effect resulting in an irreversible catastrophe. The final transfer to mass production can also be delayed if anything is amiss.
An on-demand PMIC skips the entire testing stage. This means no data can be used to guarantee the PMIC’s performance out in the field. Will it oscillate given this load? Are there any peculiar runts or spikes at this temperature? Will this voltage trigger a protection feature? In addition, if any of these events happen, the troubleshooter has nothing at hand to start with.
In contrast, it’s easy to debug a conventional PMIC performing strangely by comparing stark symptoms with evaluation data. Adjustments can be made to the circuit design and re-entered into the IC development process. Ever wondered why there are many series of certain IC products that seem to do the exact same thing? (Note: AnDAPT addresses this by earning industry-standard certifications for its product. However, it only answers the problem to a certain extent because security and assurance are still limited to the degree of testing done.)
AnDAPT’s Adaptive Multi-Rail Power Platform ICs
Nitpicking aside, the technology is an impressive feat of engineering. Can you imagine a PMIC that adapts—or should I say—andapts to a required set of electrical characteristics (no pun intended)? There are nine members in the 12-V platform family with a 6-A maximum output current cap (not bad). It communicates by SPI or I2C control, interfaced with a USB Type-B to USB Type-A cable and adapter (same as with most PMICs) to the computer. Figure 2 clearly shows how the interface works.
From my understanding of what multi-rail is, I’m expecting each input supply to the channels to have OCP enabled. This means if any of the channels are drawing too much current, the chip will automatically turn off.
I don’t have access to a copy of AnDAPT’s patent, but I can try to predict how the adaptive nature of their IC works. Hopefully, my experience can guide me toward a close assumption.
The channels of commercial PMICs can be subdivided into three general classes: operational amplifiers (that usually operate as voltage followers), low-dropout regulators (LDOs), and dc-dc switching converters (buck, boost, buck-boost, inverting, etc.). So, I’m going to assume they made three of these per channel. For example, one power block (channel) will comprise an op-amp architecture, another an LDO, and another a dc-dc. Each of them are enabled/disabled through the “digital fabric” (possibly with a multiplexer that chooses the output and/or an enable pin).

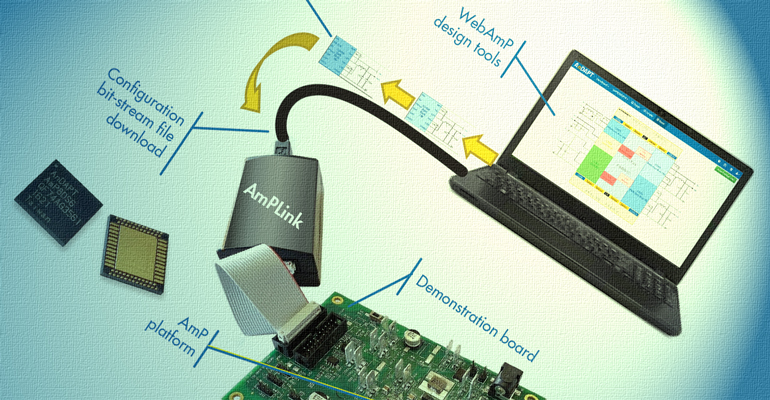

2. This interface diagram was extracted from the AmPDB1 demo board datasheet.
After all, dc-dc switching converters differ only by the arrangement of the capacitor, inductor, and diode (which are external in this case). LDOs simply use a pass transistor (I doubt they changed this; even the latest LDO architecture still uses a pass transistor). Op amps are simply op amps (though the feedback loop can have a compensation network). Other particular applications (such as battery chargers) are variants with external components (perhaps a sense resistor for the coulomb counter).
Now we have a guess on how AnDAPT manages to shift between different kinds of outputs.
How about the specifications? My hypothesis: Lots and lots of trimming networks (and maybe scalable integrated MOSFETs just for the LDOs).
The output voltage level can be adjusted by trimming the reference/bandgap voltage. Poles and zeroes can be adjusted by trimming the compensation networks (given a specific output capacitor—now you wouldn’t wonder why they’re asking for the value of output capacitance in the GUI). UVLO and OCP levels are adjusted by trimming the sampling resistance (actually, after years of experience with ASICs and PMICs, I can firmly attest that sampling anything almost ALWAYS involves a resistor/another circuit element modified to have resistance of a particular value that will affect the trigger level). Finally, the soft-start feature is just a counter interfaced to a DAC, so the DAC is the one most probably trimmed by the digital fabric.
Hmmm… reverse engineering a technology is always fun, even though I could’ve completely missed the target. How about you, what do you think the structure is behind AnDAPT’s on-demand PMIC?
AnDAPT’s AmP’s Niche in the Market
It isn’t possible to design an on-demand PMIC that can adjust to all kinds of electrical specifications. In fact, if you search family members of a PMIC product, you may find that it requires many pinouts and indications that are significantly different from the original.
Why? Because most products that PMICs cater to are diverse and unique as well (forgive me if my reiterations of conspicuous facts vex the reader; I just can’t risk losing chain of thought).
Take for example PMICs for mobile phones. The power footprint of a smartphone running iOS (Apple) will certainly be different from one running Android (say Samsung). Thus, one can expect the specifications between these two PMICs to be completely alien from each other in spite of them being designed for the same product.
That’s why AnDAPT has AmP4D and AmP12D (currently under development in its online platform). It adds more room for functionality, but I still have doubts it’s enough to address all requirements of today’s applications.
Perhaps on-demand PMICs are best used when low volume and quick design turnaround are important (just like FPGAs and standard cell libraries in digital applications). Note that FPGAs didn’t replace its custom IC counterparts because they were too expensive for mass production. The same case may apply to on-demand PMICs.
In your opinion, do on-demand PMICs have the potential to outshine its conventional counterparts?
Perspectives and Comments
The following are consolidated online comments on Andapt’s AmP technology.
Elizabethsimon commented:
Nothing on the roadmap to cover 15V input???
Where I work, we have an internally developed supply that delivers 15V to our boards...
Also, those of us who power things off car batteries would be more interested if you had something that would work from say 10 to 16V
Antedeluvian commented:
Looks intriguing. I poked around on the web site and of course it is all wine and roses, but there are quite a few products that are undescribed (look at battery chargers), so I suppose I will have to wait.
An irritant is that you need to register before you can even glimpse a data sheet. I really don't want to be a recipient of more data when I don't know if I even want to see that data.
Something to think about. Normally the IP is buried in the cost of a non-configurable chip. I am not sure I understand this model.
It's a bit "Applish" since you are not allowed to write about the devices without approval. That puts pay to just playing around and blogging about it.
It also seems that some, if not all of the devices carry a monthly licensing fee (if I understood it correctly).
I need to wrap my head around this concept- I know it works like that with IP in FPGAs, but LDOs?
Crusty commented:
As Rcurl says this looks interesting.
As you know I have moved on from Atmel to Cypress PSoC devices like the PSoC 5 this is a great chip as I can have 4 different voltages for the 4 banks of I/O pins. Along with the ability to work on voltages up to 5 volt. This power block had me interested, but thats where it stays after I looked at the pinout of the chip. They are all underneath and will not fit well with my experimentation mode which tends to the use of visible pins when soldering. I can understand the need to have a hearty heat sink area on the base if using lots of amps, but this will not go down too well in the Arduino / Maker market. That is unless someone comes up with a simple block with pins brought out to connectors.
Will they offer a $10 dev board as Cypress does, this really sells the kit.
Rcurl commented:
This looks really interesting, but it's one of those things that will have to rattle around in my head for a while until I figure out what to do with it.
How much does the Amplink adapter cost? I'm curious as to why there are so many pins on the interface connector.
It's hard to believe that you can handle 72 amps continuous in that tiny chip
utahimagineering_llc commented:
I'd say no. I've looked at this part, talked to them about it and it has its places but power supply design is really about whats [sic] the problem your [sic] trying to solve. In this case, it has a bunch of logic internally, current sensors, etc. so it might save you some space IF you need that. They still have very little silicon actually out as well. For a MP design, such as a systems board, where you need several rails sprinkled around the board, its a possible solution if you are not concerned about board space and efficiency. For my case, I have very little room and need much better efficiency so it simply doesn't play in my space.
What is going to spur a revolution? Switched cap and GaN is going to have a much bigger role going forward."
*I’ve also tried asking Dave Jones from the EEVBlog and he comments he has never heard of Andapt and is not familiar with it (it isn’t that popular yet after all). Maybe it needs to get a bit more traction in the PMIC market.
