Time-lag Fuse with Enhanced Overcurrent Protection

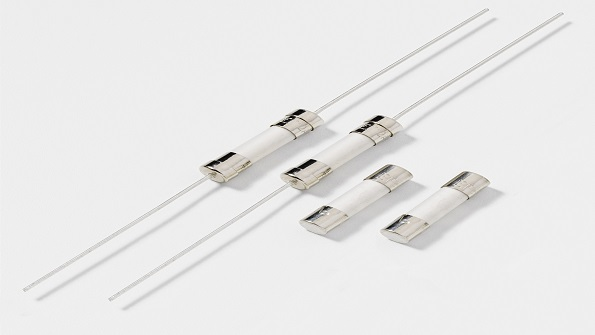

Littelfuse, Inc., has introduced the 835 Series Fuse, a time-lag, ceramic body AC fuse. The 835 Series is the first fuse from Littelfuse to combine an unparalleled I²t value, a maximum interrupting rating of 1,500A @ 250Vac, and  8/20 µs surge withstand capability in a 5 x 20 mm footprint. Current ratings of 5 A, 6.3 A and 8 A are available. This fuse, packaged in both cartridge and leaded versions, is designed to withstand frequent power surges and protect electronic devices installed in surge-prone environments. The 835 Series meets all the requirements outlined in global IEC 60127-2, Sheet 5 specification for time-lag fuses. It is RoHS compliant and 100% lead free.

Typical applications for the 835 Series include overcurrent protection for LED/LCD TVs, digital display systems, and digital signage.

All 835 Series Fuses offer these key benefits:

• Higher I2t and 1.5kA surge withstand capability reduces nuisance opening of fuses, improving the reliability of electronic devices.
• 5x22mm compact footprint saves space on the printed circuit board.
• Operating temperature range from -55°C to 125°C ensures robust performance and reliable protection in extreme temperature environments.

The 835 Series is available in quantities of 1,000 packaged in bulk. Sample requests can be placed through authorized Littelfuse distributors worldwide.
