Varistors Suited for DC and Automotive Applications

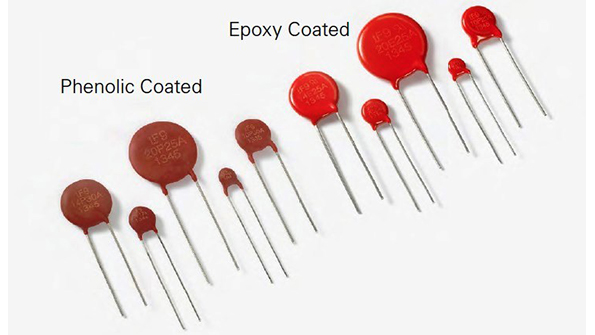

Littelfuse AUMOV Series varistors offer 50% greater surge withstanding capability than existing technologies for low dc voltage applications. The maximum peak surge current is rated up to 5KA (8/20µs pulse) to protect sensitive automotive systems from voltage transients induced by load dump and other transient events. This AEC-Q200 (Table 10) compliant series is available in five disc sizes: 5mm, 7mm, 10mm, 14mm and 20mm.

Features:

• Operating range from 14VAC to 42VAC and 16VDC to 50VDC
• Non-Repetitive Surge Current, 8/20µs Waveform (ITM) 400 to 5,000 A
• Non-Repetitive Energy Capability, 2ms Waveform (WTM) 1.0 to 140 J
• Operating Ambient Temperature Range (TA) for Epoxy coated -40 to +85 °C
• Operating Ambient Temperature Range (TA) for Phenolic coated -40 to +125 °C
• Storage Temperature Range (TSTG) for Epoxy coated -40 to +125 °C
• Storage Temperature Range (TSTG) for Phenolic coated -40 to +150 °C
• Temperature Coefficient (µV) of Clamping Voltage (VC) at Specified Test Current <0.01% °C
• Hi-Pot Encapsulation (Isolation Voltage Capability) for Epoxy coated 2500 V
• Hi-Pot Encapsulation (Isolation Voltage Capability) for Phenolic coated 500 V
• Epoxy Coating Insulation Resistance >1,000 MW

Benefits:

• Low voltage varistor design provides high peak surge current rating
• Reduced footprint and volume required for surge protection
• Optional phenolic coating for higher operating temperature up to 125 °C
• High resistance to thermal cycles for phenolic coating
• High energy absorption particularly for automotive load dump and jump start
• Lead-free, Halogen-Free and RoHS compliant Applications
• Body Electronics Systems
• Powertrain Systems
• Infotainment Systems
• Automotive Control
