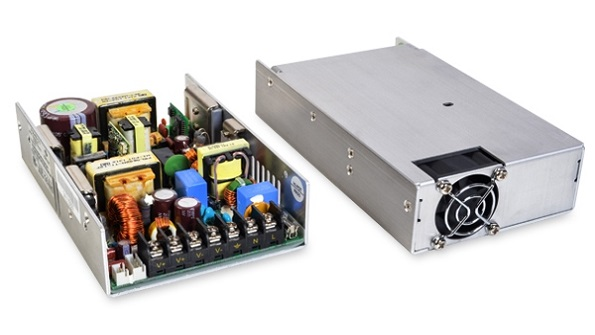

CUI Inc announced a family of compact 400 W ac-dc power supplies to its power portfolio. The PCM-400 series is housed in four optional chassis mount case styles, including a compact U-frame measuring 6 x 4 x 1.5 inches (152.4 x 101.6 x 38.1 mm) and enclosed versions with top or rear fan options. Featuring a wide range of available voltages, multiple protections and peak power capabilities up to 700 W within a 500 µs duty cycle, this series is ideally suited for numerous ITE, telecommunications and industrial applications.
The PCM-400 power supplies meet EN60950-1 standards, carry UL/cUL and TUV safety certifications, and provide EN55022 class B EMI compliance. They feature 3000 Vac input-to-output isolation and an output-to-ground isolation of 1500 Vac.
The series provides a universal 90~264 Vac input for global operation and comes available in eight separate single output models ranging from 12 to 54 Vdc. Dual output versions are also available. The power supplies are rated for operation at full load from 0° to 50 °C ambient, derating to 50% load at 70 °C. Additional features include active PFC, remote on/off control and protections for over voltage, over current, short circuit, and over temperature.
The PCM-400 series lists for $187.75 each in quantities of 8-10 weeks. Availability is 8 to 10 weeks ARO.
