Hybrid Battery Provides Stand-Alone, Grid-Tie Storage Systems In One Device

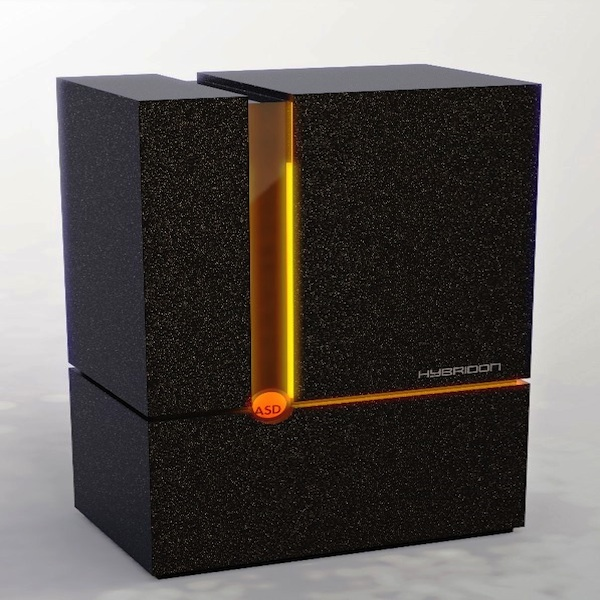

A hybrid battery from ASD Automatic Storage Device combines the strengths of stand-alone and grid-tie storage systems. Compared to existing batteries, the new device significantly raises a household's degree of self-sufficiency, frequently to over 90%. Thanks to the small number of components, ASD's new energy storage system is particularly cheap to produce and supply, typically costing 20-30% less than other lithium-ion batteries.
Previously, homeowners had to choose between grid-tied and stand-alone storage systems. Houses with grid-connected systems draw power from the grid almost continuously, even when their batteries are fully charged. Stand-alone storage systems, on the other hand, disconnect the house completely from the public grid as soon as sufficient power is stored and then supply the home with power produced on site. However, these systems have one big disadvantage: if the battery no longer furnishes enough power to supply all the appliances in the home, the storage system is shut down and the house draws 100% of its electricity from the grid again. Conventional stand-alone battery systems therefore only allow either fully battery-based or grid operation, but not both at the same time.
The hybrid battery system combines the operating principles and advantages of both technologies: it works like a stand-alone system and disconnects the house from the grid for as long as its batteries are able to furnish sufficient power. The house thus needs no further power from external supplies and operates autonomously. At times when the battery capacity is insufficient, the system automatically procures the additional quantity of energy required from the power grid. By design, the system therefore combines both energy sources and thus utilizes the maximum amount of battery power directly on site. This flow of current is regulated via a computer-controlled filter developed by ASD for the hybrid battery.
The operating principle of ASD's hybrid battery significantly increases a household's degree of self-sufficiency compared to that achieved with existing systems, frequently topping 80%. It takes less than a millisecond to switch between the two operating modes, so the changeovers are detected neither by humans nor the appliances in a system.
The battery is suitable for both ac and dc coupling. This enables more flexible planning than previous storage types, which are specifically designed for either ac or dc operation. The battery can be charged by photovoltaic installations, CHP plants and small wind powered generators alike.
