30 W DC-DC Converter Has 1 x 1-in. Footprint

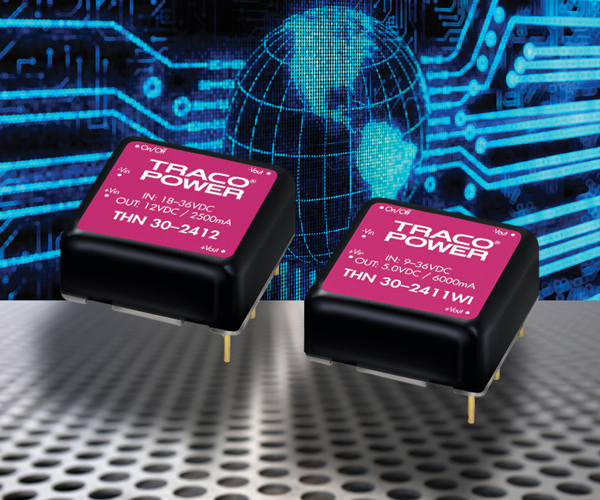

The TRACOPOWER THN-30 series of DC-DC Converters from PowerGate LLC offers the highest power density available in the industry standard 1 x 1 in. footprint. These encapsulated DC-DC Converters feature high efficiencies up to 92% and by using the highest grade components they can be operated in a temperature range of  -40°C up to 55°C at full load or up to 85 °C with optional heat-sink or output power de-rating.

The THN-30 series offers a wide 2:1 input (9-18 / 18-36 / 36-72 Vin Range) and the THN-30WI series offers ultra-wide 4:1 input (9-36 / 18-75Vin Range).  Both series are offered with 7 output models of 3.3 / 5 / 12 15 / 24 / ±12 / ±15 Vout.  Their encapsulated and shielded package measure only 1 x 1 x 0.4" making them the highest density products available in this power range.  Additional functions include Remote on/off control, Remote Adjustment, Over Current Protection, Over Voltage Protection and Over Temperature protection.  The modules supply a tightly regulated output voltage even under no load condition. Low input current at no load operation (8 mA) and remote On/Off control make these converters an ideal solution for energy critical systems. All models offer 1500 VDC Isolation, UL60950-1 Safety Approvals, EN55022 Class A Emissions (with input capacitor) and are backed by a 3 year warranty.

Small quantity samples are available from stock with standard production lead times of 10-12 weeks. Pricing is as low as $61.00 in 50 piece quantities with substantial discounts for OEM quantities.
