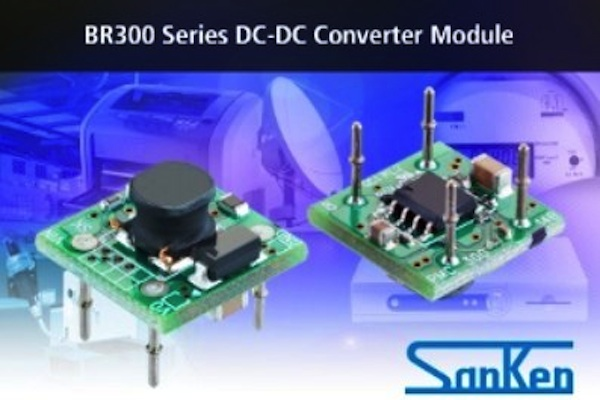

A dc/dc converter module series from Allegro MicroSystems, LLC is targeted at the telecommunications and consumer markets. The BR300 series is non-isolated step down type DC/DC converter module. The single module includes a control IC, inductor, ceramic capacitor, and standoff pins. This module provides a complete DC - DC converter solution, requiring few external components. This new series is offered by Allegro and manufactured and developed by Sanken Electric Co., Ltd. in Japan.
The BR300 series has an input voltage range of 8 to 30 V and includes a step-down chopper circuit topology. It has a switching frequency of 350 kHz with an output of 5 V, 1 A and 5 W. Through the use of high-frequency technology it can be configured easily, reducing overall design time, allowing the reuse of designs, to save space on the application PCB.
Key protection features include overcurrent protection (OCP) with automatic restart as well as thermal shutdown protection (TSD).
The BR300 and the BR301 are priced at $3.00 in quantities of 1000.
