Ericsson has launched a 200 W DC/DC converter module in an eighth-brick format that has been designed for radio-frequency power amplifier (RFPA) applications and supplying the voltage to power transistors that are used in new generation of integrated radio amplifiers.
Importantly, the PKB4216C series module offers high flexibility with its ultra-wide adjustable output voltage from 15 to 33 V, which makes it possible to power a wide range of power transistors and also reducing voltages when the RF power amplifier has been into sleep mode, thereby decreasing power consumption. Delivering power up to 200 W and an output current up to 6.67 A, the PKB4216C is also ideal to power RFPA applications that use semiconductor technologies such as Laterally Diffused Metal Oxide Semiconductor (LDMOS).
In addition to powering RFPA applications, the output voltage range meets specifications as defined by the Antenna Interface Standards Group (AISG), which mandates a 10 to 30 V input voltage range to power active RF antennas. The module's voltage range also covers 24 V and 28 V, making it suitable for its use in industrial applications interconnected to ICT equipment that requires either a sub-24 V or 28 V supply from the mains rectifier.
A key feature of the PKB4216C series is that it has been designed for deployment in environments where only natural convection will be available. The series' mechanical design has been optimized to reduce thermal resistance to an absolute minimum between power dissipating components and the cold-wall conduction-cooling element, thereby delivering outstanding thermal performance for applications that have limited airflow such as integrated antennas.

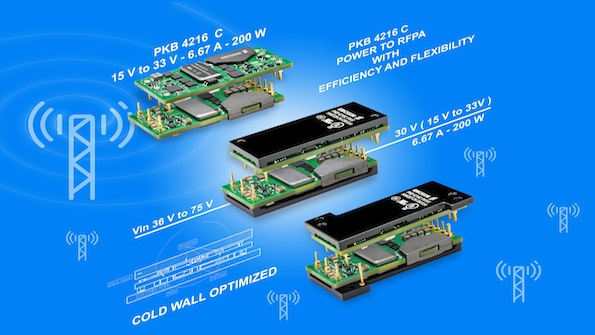

Available in an industry-standard eighth-brick footprint with dimensions of 2.3 x 0.89 in and a low-profile height of just 0.34 in (58.4 x 22.7 x 8.6 mm), the module delivers 95% typical efficiency at 30 V output half load, guaranteeing low power dissipation and reduced energy consumption. Operating over a 36 V to 75 V input-voltage range, the PKB4216C series meets requirements for normal input-voltages ranges in 48 and 60 V(DC) systems.
Offering an MTBF (Mean-Time-Before-Failure) of 3.53 million hours, the PKB4216C series meets safety requirements according to IEC/EN/UL 60950-1 and offers input/output isolation of 1500 VDC. The series also includes many protection features including output-over-voltage protection (OVP), input-under-voltage shutdown, over-temperature protection (OTP), output short-circuit protection and pre-bias start-up capability.
The PKB4216C series is available for both through-hole (PI version) and surface-mount (SI version) assembly. The PKB4216C series is priced at $33 in OEM quantities.
