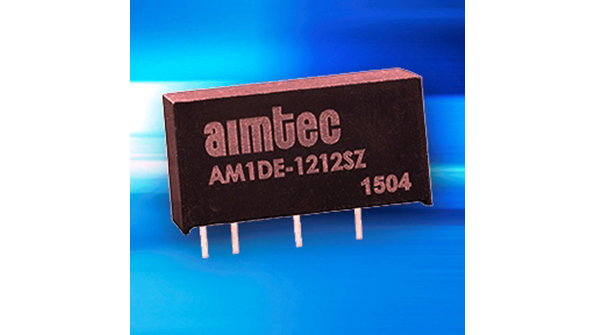

The new AM1DE-Z series of 1-watt power supplies from Aimtec features extended temperature operation of 105°C. The product also features input-to-output isolation of up to 3000 VDC, and continuous short circuit protection.
Supported input voltages of 5, 12, and 24VDC convert to single output voltages of 5, 12, & 15 VDC, or dual ±5, ±12, & ±15 VDC. Operating within an ambient temperature range of -40°C to 95°C at 100% loading, and up to +105°C at 90% loading, the AM1DE-Z series is designed for harsh operating conditions and can be integrated into a multitude of applications, such as digital circuits, low frequency analog, or relay drive circuits.
Available in a compact single inline SIP7 package (19.50 x 6.00 x 9.90 mm), the AM1DE-Z is offered with an input to output isolation of 1500VDC or 3000 VDC for easy integration in industrial, telecommunication and computer applications including: car batteries, plasma cutters, temperature control, power supplies, sensor controls, train system controls, laser systems, medical devices, measurement equipment, lighting systems, industrial and automated systems and many others.
