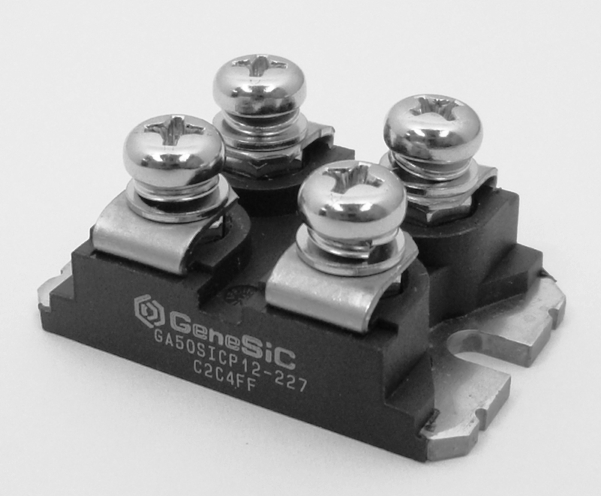

GeneSiC Semiconductor announces the immediate availability of 20 m -1200 V SiC Junction Transistor-Diodes in an isolated, 4-Leaded mini-module packaging that enables extremely low Turn-On energies losses while offering flexible, modular designs in high frequency power converters. The use of high frequency, high voltage and low on-resistance capable SiC Transistors and Rectifiers will reduce the size/weight/volume of electronics applications requiring higher power handling at high operating frequencies. These devices are targeted for use in a wide variety of applications including induction heaters, plasma generators, fast chargers, DC-DC converters, and switched mode power supplies.
Co-packaged SiC Junction Transistors (SJT)-SiC Rectifiers offered by GeneSiC are uniquely applicable to inductive switching applications because SJTs are the only widebandgap switch offers >10 sec repetitive short circuit capability, even at 80% of the rated voltages (eg. 960 V for a 1200 V device). In addition to the sub-10 nsec rise/falls times and a square reverse biased safe operation area (RBSOA), the Gate Return terminal in the new configuration significantly improves the ability to reduce the switching energies. These new class of products offers transient energy losses and switching times that are independent of junction temperature. SiC Junction Transistors from GeneSiC are gate-oxide free, normally-off, exhibit positive temperature co-efficient of on-resistance, and are capable of being driven at low Gate voltages, unlike other SiC switches.
SiC Schottky Rectifiers used in these mini-modules show low on-state voltage drops, good surge current ratings and industry's lowest leakage currents at elevated temperatures. With temperature independent, near-zero reverse recovery switching characteristics, SiC Schottky rectifiers are ideal candidates for use in high efficiency circuits.
