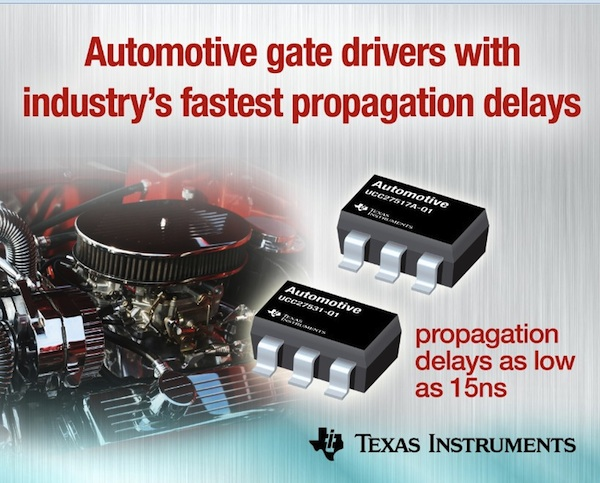

Texas Instruments introduced six, AEC-Q100-qualified gate drivers with industry's fastest propagation delays of less than 15 nanoseconds. The UCC275xx-Q1 family of single- and dual-channel gate drivers provides the highest power efficiency, reliability and flexibility compared to existing solutions for automotive applications, such as powertrain, bi-directional converters (12- to 48-V and 12- to 400-V input), onboard charging, traction inverters, advanced driver assistance systems (ADAS), safety, headlamps and instrumentation clusters.
Demanding requirements to improve fuel efficiency mean automotive systems must shrink in size, lowering the overall weight of the vehicle. The ultra-low propagation delays in the UCC275xx-Q1 family help automotive systems efficiently switch power electronics at high frequencies to maintain a small footprint and reduce overall vehicle weight.
Key features:
• Integrated solution saves space and enables highest efficiency: With peak currents ranging from 2.5 A to 5 A and propagation delays of less than 15 ns, TI’s automotive output-stage drivers can replace discrete totem pole solutions.
• Wide temperature range of -40 to 140 degrees Celsius and negative input voltage of -5 V enables handling of ground bouncing experienced in harsh environments.
• Design flexibility to support a wide input voltage range: Supports 4.5 V to 35 V to drive wide bandgap switches, such as SiC, MOSFETs and IGBTs that are capable of withstanding high temperatures without compromising efficiency.
Samples and production quantities are available now. Pricing in 1,000-unit quantities, the UCC27531-Q1 and UCC27532-Q1 single-channel gate drivers are available in a 6-pin SOT-23 package for USD$0.88. The UCC27517A-Q1, UCC27518A-Q1 and UCC27519A-Q1 single-channel gate drivers are available in a 5-pin SOT-23 package for USD$0.61 and the UCC27524A-Q1 dual-channel gate driver is available in an 8-pin MSOP-PowerPAD package for USD$1.00.
