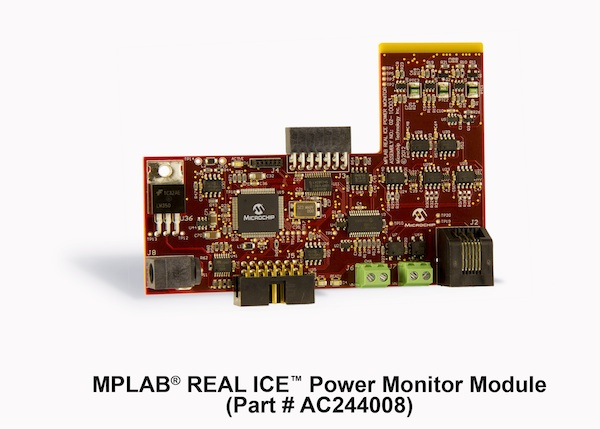

The MPLAB® REAL ICE™ power monitoring module from Microchip Technology Inc. enables designers to identify and eliminate code that consumes high current, in real time. Combined with the MPLAB REAL ICE in-circuit emulator and MPLAB X IDE, this development platform allows users to measure, graphically profile and optimize code power consumption for all of Microchip's more than 1000 8-bit, 16-bit and 32-bit PIC® microcontrollers. Additionally, it offers unsurpassed micro-Amp current measurement, with an overall dynamic range up to 1 Amp, and a voltage range of 1.25 V to 5.5 V. At a list price of $379.99, Microchip's is significantly more cost effective than similar tools, making it ideal for a broad range of battery-powered, digital power-supply, motor-control and metering applications.
Embedded designers continue to seek new ways to optimize power consumption for both extended battery life and greater line-power efficiency. As MCU vendors and users have greatly reduced hardware power consumption-such as the 9 nA sleep and 30 µA/MHz active current consumption of Microchip's eXtreme Low Power (XLP) PIC MCUs-application software is the next place for engineers to focus. Microchip's provides programmable power to the target, as well as sampling intervals, enabling users to run at specific voltage levels and see tailored measurements. Designers can also set a "current break" threshold level that breaks when exceeded, allowing them to pinpoint the code causing the spike and debug it. All of these measurements can be displayed graphically, via the "Current Profile Graphing" feature, enabling engineers to better understand which sections of their code are consuming higher current.
The MPLAB REAL ICE (part # AC244008) is available for $379.99 each.
