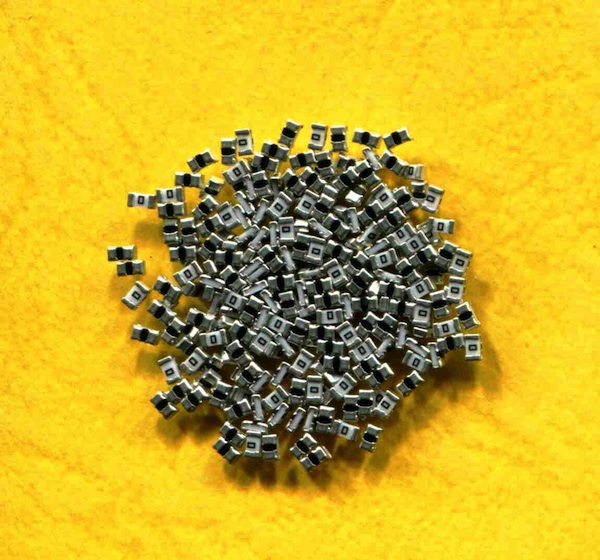

The HCJ Series from Stackpole offers a thin film surface mount chip jumper capable of much higher current than standard jumpers.
The HCJ Series from Stackpole offers a thin film surface mount chip jumper capable of much higher current than standard jumpers. The current handling ranges from 6.5 amps for the HCJ 0402 size up to 63.2 amps for the HCJ 2512. In comparison, the typical rated current for a standard 2512 thick film jumper is 3 amps. The HCJ 0402 has a maximum resistance of 3 milliohms while the other sizes have a maximum resistance of 0.5 milliohms. This ensures much lower power dissipation for the HCJ Series compared to similar jumpers with typical resistance of up to 50 milliohms.
The HCJ Series is available in chip sizes 0402, 0603, 0805, 1206, and 2512 and is 100% RoHS compliant and lead free. Pricing is size dependent and ranges from $0.067 to $0.11 each in full reel quantities. Contact Stackpole or one of our franchised distributor partners for volume pricing.
