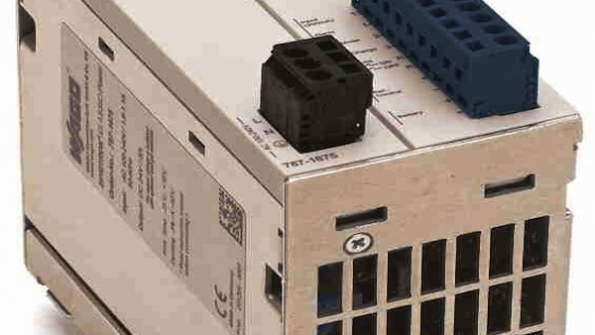

WAGO recently expanded its EPSITRON® family to include a power supply with integrated UPS Controller. The compact 787-1675 combines two core functions - a standard single-phase power supply with an uninterruptable power supply (UPS) controller - into one unit, saving panel space and reducing cost. Completely reliable with local and remote monitoring and temperature-controlled charging in three stages, the 787-1675 can be used across a variety of applications.
EPSITRON®s UPS products offer battery status and extended battery life utilizing the following features: a)Temperature Compensation - Offers actual temperature sensor feedback for optimal charging; B)Battery Control - Provides status of battery condition and advanced warning of battery life. WAGO also offers free software for simple configuration and convenient monitoring. In addition, a built-in serial port allows connection to the WAGO-I/O-SYSTEM, or another PLC, for remote monitoring.
The power supply accepts a range of 85 V to 264 V AC input and provides backup battery power to loads up to 5 amps at 24 Vdc. EPSITRON®s two-in-one unit supplies the 24 Vdc necessary for electrical machines and automation systems along with back-up power from the UPS, preventing unpredictable shut-downs due to power outages or power dips. Furthermore, the 787-1675 has an operating temperature for a wide variety of applications at -25 °C to +70 °C and is 89 percent efficient.
The EPSITRON® family includes PRO Power Supplies, CLASSIC Power Supplies, COMPACT Power, ECO Power Supplies, Electronic Circuit Breakers, Uninterruptible Power Supplies, Capacitive Buffer Modules and Redundancy Modules. For larger power requirements the EPSITRON® line carries products up to 20 A.
