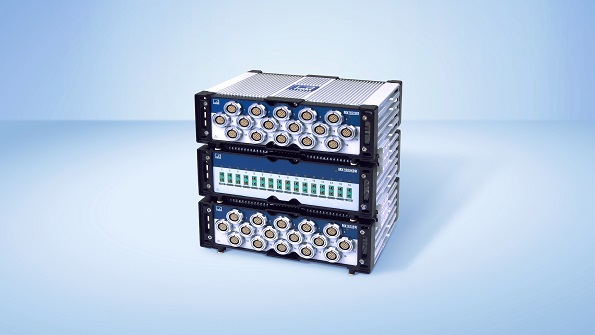

HBM , Inc. introduced three new amplifier modules for its SomatXR Data Acquisition System.
·SomatXR MX1615B-R Amplifier This amplifier has 16 individually configurable inputs for potentiometric sensors, PT 100 temperature sensors, or strain gages (SG) in full-, half-, or quarter-bridge configurations. In addition, it can measure and voltage up to ± 60 V.
·SomatXR MX1601B-R Amplifier. This amplifier provides inputs for measuring standardized voltage (± 60 V, ±10 V or ±100 mV), standardized current (0 - 20 mA or 4 - 20 mA), and IEPE/ICPC sensors on 16 individually configurable channels. Every channel electrically isolated and has a 24-bit delta-sigma A/D converter. Sample rates are as high as 19,200 samples/s per channel, and the analog bandwidth is 3 kHz.
· SomatXR MX1609KB-R Amplifier. This amplifier provides 16 individually configurable thermocouple channels with full isolation.
The new amplifier modules are especially suitable for measurements under very harsh operating conditions out in the field. All three have an IP65 / IP67 rating, meaning that it's both dust-tight and water-tight and an extended operating temperature range of -40 to +80 °C (-40 to +176 °F). They meet MILSTD202G requirements for shock and vibration, and can withstand shocks up to 70 g and vibration of at least 10 g.
