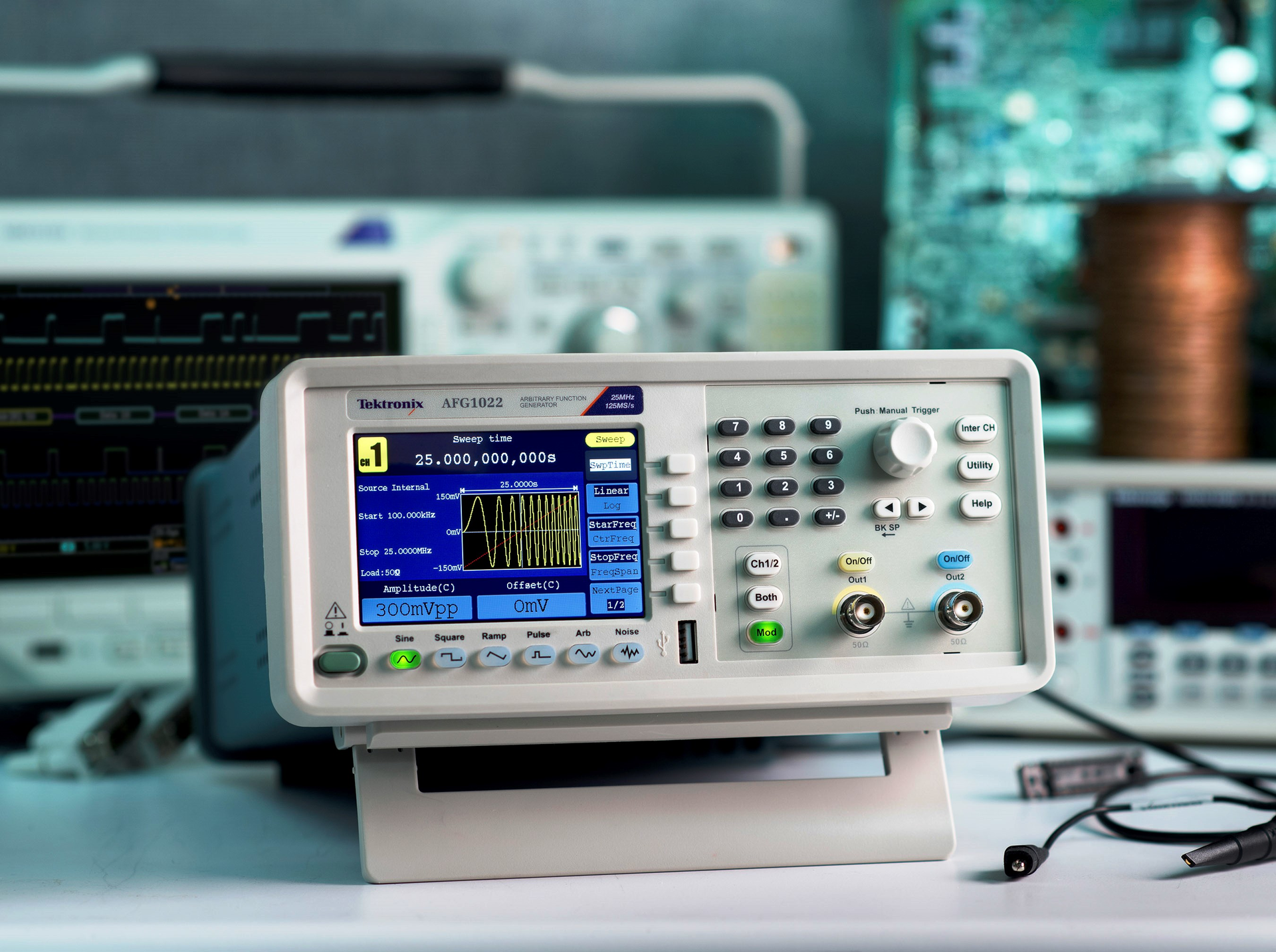

Tektronix, Inc. introduced the entry level AFG1022 Arbitrary/Function Generator featuring best-in-class performance and functionality to support a wide range of use cases and course subjects. The AFG1022 integrates seamlessly with the new TekSmartLab™ wireless lab instrument management solution.
As electronic systems continue to increase in speed and complexity, colleges and universities globally are looking to outfit labs with modern test instrumentation to better prepare students for the real world. With the addition of the AFG1022, Tektronix now offers educational institutions the industry's most complete set of affordable instruments including oscilloscopes, signal generators, digital multi-meters and power supplies, all tied together with TekSmartLab.
Compared to scope-based signal generators or standalone AFGs in its price class, the AFG1022 offers better performance and greater flexibility. Key performance specifications include dual-channel, 25MHz bandwidth with 1mVpp to 10Vpp output, 14-bit vertical resolution and 1µHz frequency resolution. It provides a 125 MS/s sample rate along with 64 MB of built-in non-volatile memory and USB memory expansion for user-defined waveforms.
On the functionality side, the instrument offers 50 built-in standard function and arbitrary waveforms with continuous, modulation, sweep and burst modes to cover almost all the test requirements found in basic education labs. A built-in 200 MHz counter with 6-digit resolution offers an easy and precise way of performing frequency, period, pulse width, and duty cycle measurements.
To maximize learning, the AFG1022 incorporates an intuitive user interface with a 3.95-in TFT color display, shortcut buttons and rotary knob for quick setting adjustments. Its compact form factor saves valuable bench space.
The AFG1022 is available now for orders worldwide with delivery beginning in March 2015. Price is $715 US MSRP.
