Asterion 3-kVA AC sources offer high power density, touchscreen

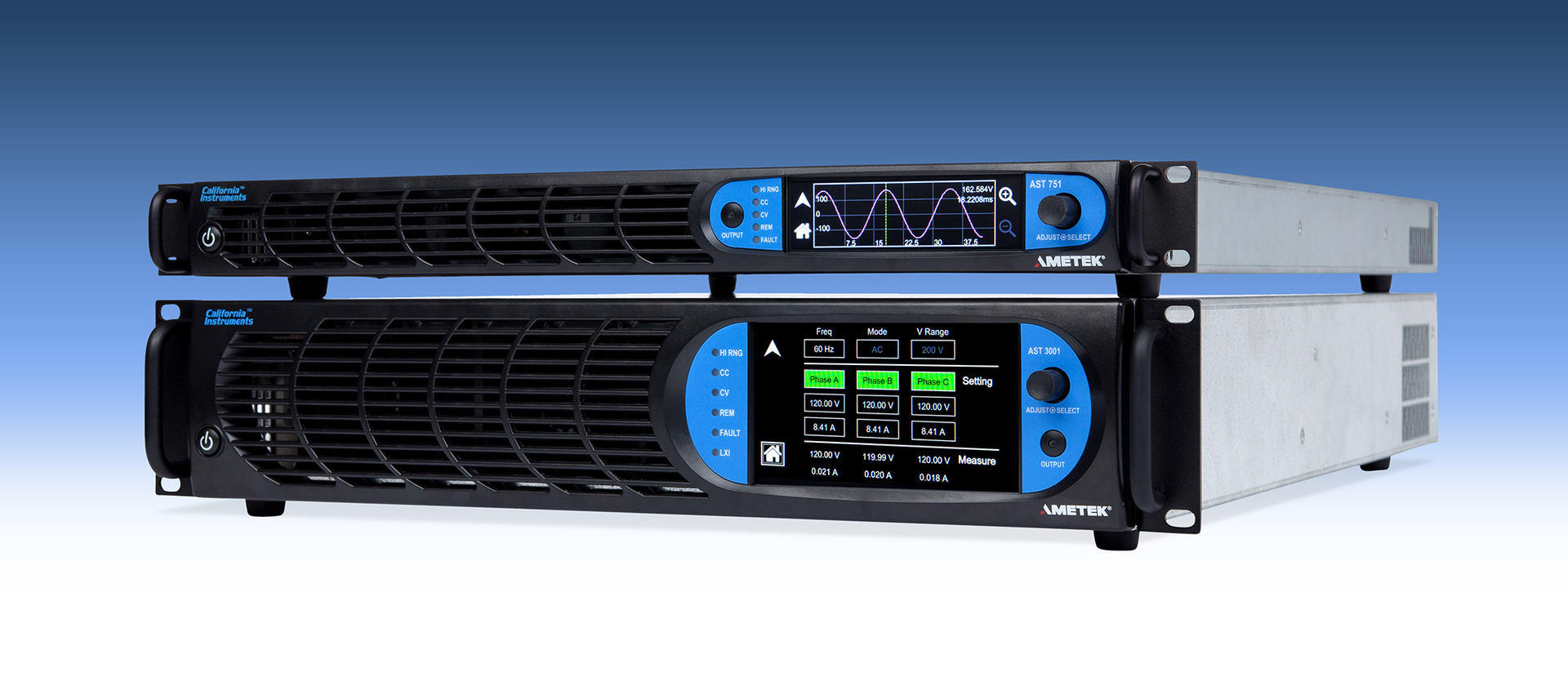

San Diego, CA. AMETEK Programmable Power announced that it has added three new models to its Asterion line of AC/DC power sources. The Asterion 1503 supplies up to 1,500 VA or 1,500 W, the Asterion 2253 supplies up to 2,250 VA or 2,250 W, and the Asterion 3003 supplies up to 3,000 VA or 3,000 W. All three units come in a 2U enclosure and in both single- and three-phase models.
Like the lower-power 1U Asterion AC units, the Asterion Models 1503, 2253, and 3003 offer users a combination of intelligence, performance, and modularity that make them adaptable and affordable. The key to Asterion’s performance is AMETEK’s iX2 current-doubling technology. With iX2, as the output voltage decreases from the maximum value to one-half the maximum value, and the available output current increases up to two times the rated output current. This allows Asterion to maintain maximum power through the widest range of voltages. As a result, iX2 current-doubling technology eliminates the need to buy multiple sources or overpowered sources to run tests at different voltage levels, such as when performing low line-voltage testing.
Other unique Asterion benefits include auto-paralleling and clock/lock. With auto-paralleling, users can combine up to six units to achieve 18,000 VA of output power. One unit becomes the master while the rest serve as auxiliary units. The clock/lock feature allows users to easily configure multi-phase systems, such as split-phase, three-phase, or even higher phase count systems. This allows users to purchase only the power they need today and then easily add more power and/or phases later as required. That scalability, along with the ability to expand easily as required, helps protect the value of the user’s initial investment and allows additional capital spending to be deferred until needed.
Asterion offers wide AC and DC output voltage ranges up to 400 VAC and 500 VDC. Load and line regulation are ±0.025% and ±0.015%, respectively. In addition, test engineers will appreciate the Asterion AC source’s ease of use. AMETEK developed an entirely new user interface for this platform. The intuitive, touchscreen interface allows users to quickly and easily set up the source and run tests. The Asterion offers a complete avionics test suite as an option, with a programmable frequency between 16 Hz and 5,500 Hz.
This set of features allows Asterion to be used in both the lab and in ATE systems. If the Asterion is used as part of an ATE system, test engineers can order it without a front panel, which offers significant savings.
Asterion comes with standard LAN, USB, and RS-232 interfaces, and an optional GPIB interface is also available. Intuitive Virtual Panels control GUI software comes bundled with the instrument for easy remote control from a computer. Included drivers allow test engineers to quickly integrate the unit into ATE systems.
