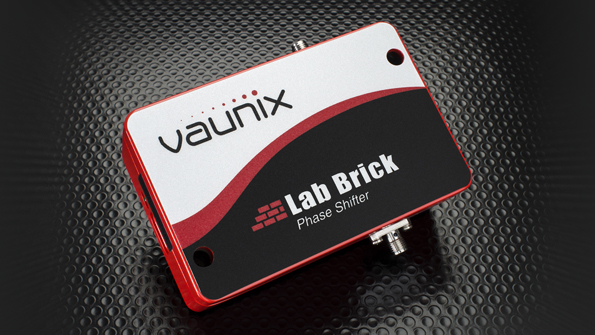

The LPS-802 Lab Brick phase shifter from Vaunix Technology, with a frequency of 4-8 GHz, provides excellent phase accuracy while offering 1 degree phase resolution. Phase can be set from the GUI, configured from an uploaded phase profile or programmed using the provided API DLL. The GUI software can track and control several connected phase shifters, simplifying multiple device test setups. Offering 360 degree phase control in one-degree increments and storing settings in internal memory, allows the USB powered and controlled device to power up in a specific phase state. Each unit is shipped with a 6-ft. USB cable, a thumb drive containing the GUI software and a soft copy user manual. Housed in a rugged aluminum enclosure, the LPS-802 Lab Brick phase shifter is suited for applications in beam forming, signal cancellation, phase modulators, MIMO test platforms for LTE and WIFI, and phased array antenna systems.
