"This smart and cost-effective approach makes it easy to build accurate high channel count measurement systems with higher electrical isolation and safety ratings,” says AstroNova Test & Measurement General Manager, Bryan Nadeau. “The ITCU-16 is ideal for higher channel count mixed-signal applications. It allows engineers to acquire from 16 up to 480 thermocouple inputs with high accuracy and at a lower cost per channel than competitive offerings. It’s a great addition to the AstroNova Daxus DXS-1100 and SmartCorder DDX-100 module lineup."

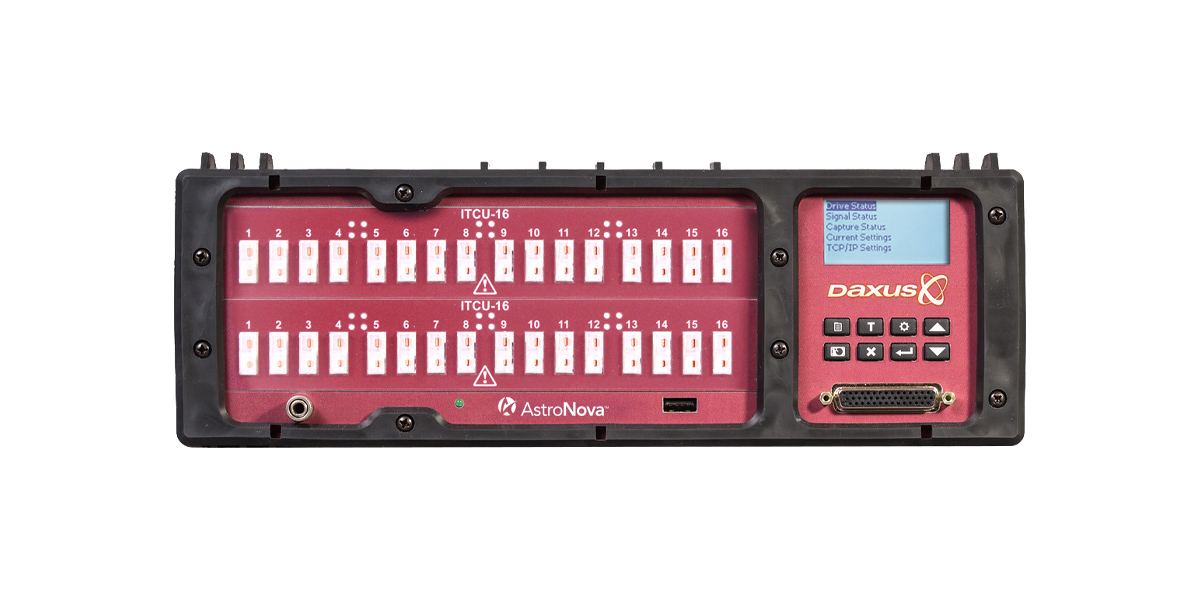

With built-in mini-TC connectors, the ITCU-16 eliminates the need for adapters. This high accuracy, 16-channel thermocouple input module is designed for applications such as an environmental chamber, test cell monitoring, engine testing, and product validation.
Due to ITCU-16’s open thermocouple detection (OTD) technology, users can now detect wiring problems immediately resulting in reduced test time. Detecting broken wires and loose connections is easier than ever.
Key product features include:
- Supports all common thermocouples (J, K, E, T, N, B, R, S & C)
- Direct connectivity with standard Mini-TC connectors
- High accuracy (<1.5 deg C typical)
- High resolution (24-bit)
- 300 Vrms, Cat II rated isolation
- Open thermocouple detection
- 50/60 Hz noise rejection
- High sample rate mode (50 Hz)
- Cold junction compensation
To learn more about the ITCU-16 module, the Daxus DXS-1100 and SmartCorder DDX-100 data acquisition system capabilities, visit: https://tm.astronovainc.com/products/data-acquisition-systems/
Watch our video here: https://www.youtube.com/watch?v=t-D8WEL_W34
