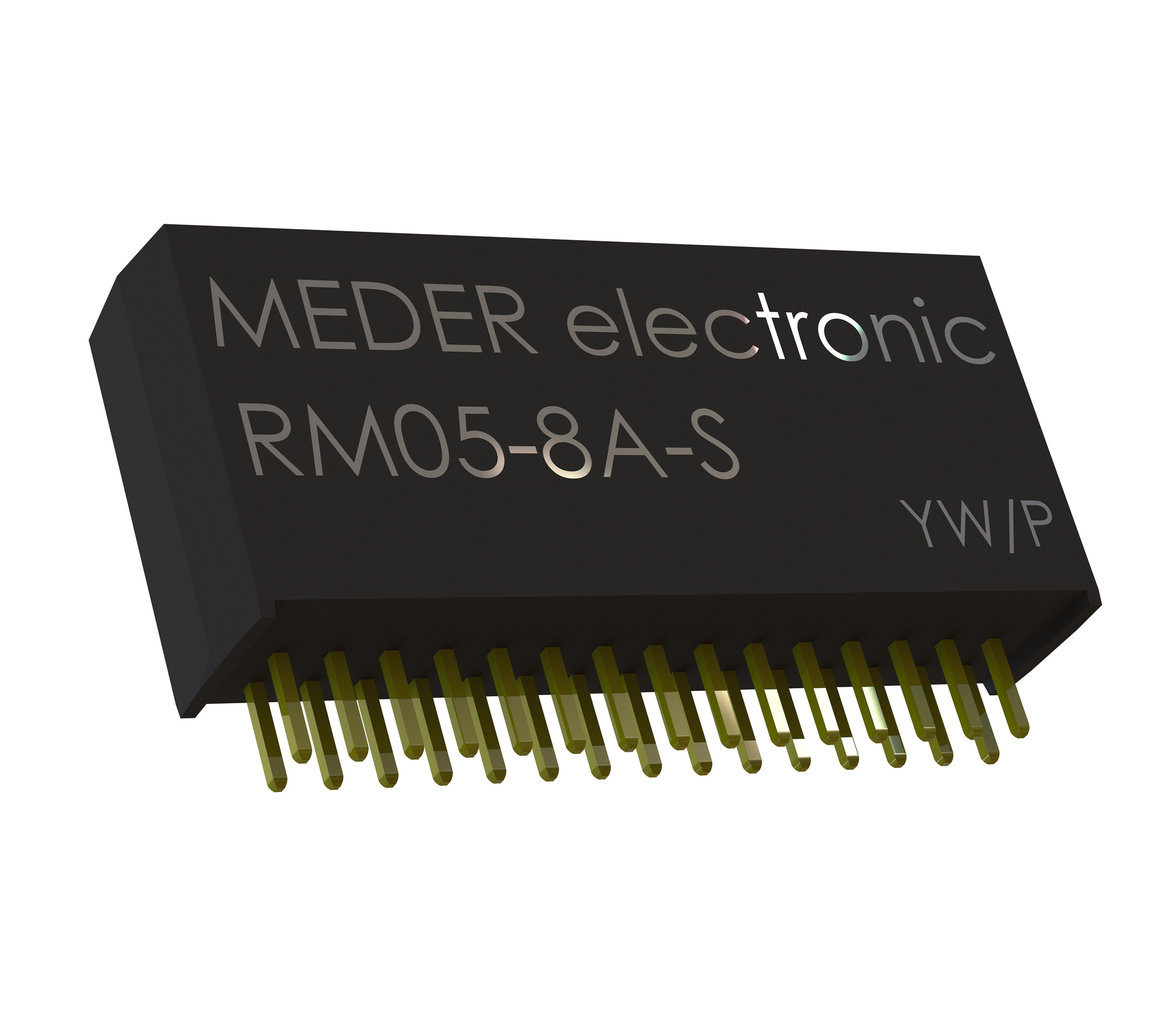

Equipped with a new generation of drivers, the RM05-8A-S PCB mount reed relay module from Standex-Meder Electronics offers a 24% smaller footprint than the RM05-8A. It has a minimum breakdown voltage of 210 VDC. Power switching up to 10 watts is available, and comes with coil voltage of 5 VDC.
The RM05-8A-S features gold-plated leads for improved solderability, with a standardized dual-in-line pin layout (2mm raster). No external activation electronics are required, cutting down on wiring costs, and the RM05-8A-S also requires reduced assembly time. This relay is also available with parallel activation electronics.
Like all of Standex-Meder's reed relay modules, the RM05-8A-S is RoHS compliant and can perform millions of reliable operations. It is not currently available through distribution, but samples can be requested from Standex-Meder factories.
