Power Entry Module Now Offered with Custom Wires

May 2, 2013

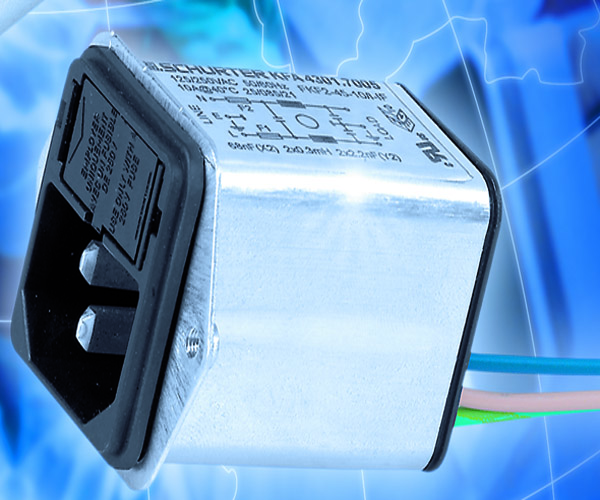

The KFA power entry module from Schurter with IEC C14 inlet, EMC filter, fuseholder and optional voltage selector can now be supplied with custom wiring for optimized cost, integration, and speed of assembly.

The KFA is available with standard or medical filters in rated currents of 1, 2, 4, 6 and 10A at 125/250 VAC with UL/CSA, ENEC and CCC approvals. The 2-pole fuse drawer is available with or without voltage selector for 5x20mm fuses. It is offered in two styles: finger grip or extra safe. The extra safe version prohibits users from removing the fuse drawer while the power cord is plugged into the equipment.

The KFA is used in a variety of applications, although its compact size and voltage selector options are especially popular in audio applications. The version with extra safe fuse drawer is particularly suited for medical devices according to IEC 60601-1. The series is also suitable for use in datacom applications described in IEC 60950. The KFA is compatible with V-Lock cordsets, which provide a simple and effective cord retaining system to prevent unintentional disconnection of the power cord from the equipment.
