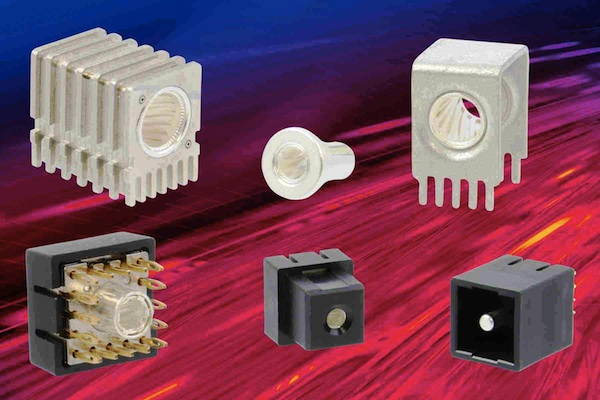

Amphenol Industrial Global Operations has enhanced its RADSOK technology high current contact system to RADSOK R4. This improved system is available in board-to-board, wire-to-board and busbar-to-board configurations.
Ideal for use by both server and board manufacturers, RADSOK R4 delivers connections up to 200 A. The system's hyperbolic grid contact provides multiple points of contact and a high contact surface area for efficient and low resistance power transmission.
RADSOK R4 features a lower temperature rise than other traditional contact systems in its class, enabling smaller overall connector packaging and compact footprints. With a 25% reduction in outside diameter over previous models, the new R4 helps to further increase power density and save space.
Amphenol's RADSOK R4 is easily configured to specific application requirements. The versatile RADSOK contact can be efficiently adapted to custom packaging with minimal non-recurring engineering costs. The proven RADSOK radial contact design offers superior mechanical and electrical performance for high current board termination. The system offers more consistent performance as well as lower voltage drop and contact resistance.
For enhanced radial float tolerance in applications that require blind mate or mechanical robustness, RADSOK Super Twist R4 contacts are available.
RADSOK R4's laser welded assembly offers better mechanical strength than other contact systems.
