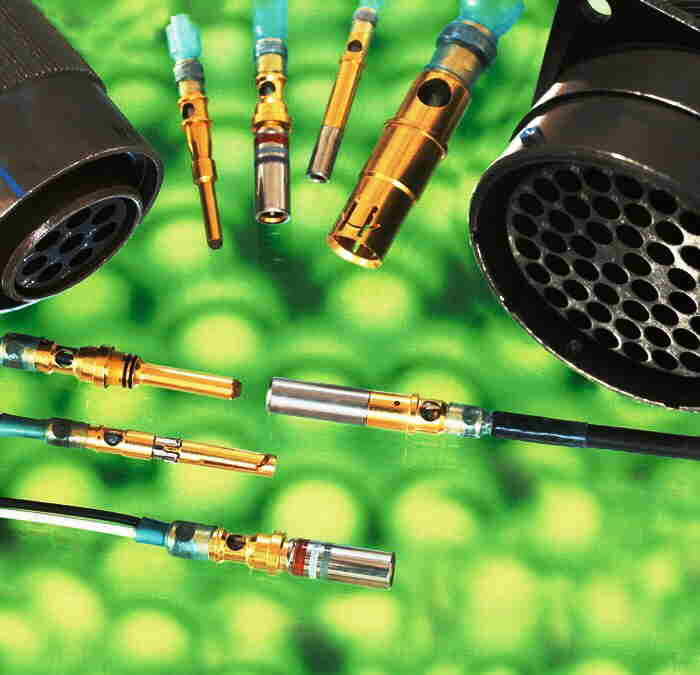

TE Connectivity (TE) announces Raychem SolderTacts contacts that utilize a one-piece contact design with integrated soldering technology to deliver fast, reliable terminations for circular connectors. SolderTacts contacts help eliminate the variables of crimping and enable a one-step installation process can reduce handling and installation costs. Their versatile design makes them particularly well-suited to military, aerospace and defense equipment applications.
SolderTacts contacts provide simultaneous electrical connection and strain relief with a heat-shrinkable tubing insulation. The insulation is transparent and inspection windows are provided to produce a fully inspectable termination.
The contacts provide the optimum amount and type of solder and flux in a prefluxed solder preform that controls soldering and reduces operator sensitivity. The geometry of the coaxial cables is carried through the connector to eliminate the need for separate pins, helping reduce crosstalk and improve shielding effectiveness and signal transmission.
SolderTacts contacts can be terminated with standard TE Connectivity Raychem heating tools and, once terminated, they can be located in and out of connector cavities with standard insertion and extraction tools. They are replaceable without cutting and re-stripping or shortening the cable.
The Raychem SolderTacts product offering encompasses designs for connector types: MIL-C-38999 Series I, II, III & IV, MIL-C-26482, MIL-C-83723 and MIL-C-28748 and are available in a range of sizes to suit all the popular contact configurations.
