Avago Technologies recently unveiled a wide array of new industrial fiber optic products targeting renewable energy, industrial motor drive and transportation applications.
Avago Technologies recently unveiled a wide array of new industrial fiber optic products targeting renewable energy, industrial motor drive and transportation applications.

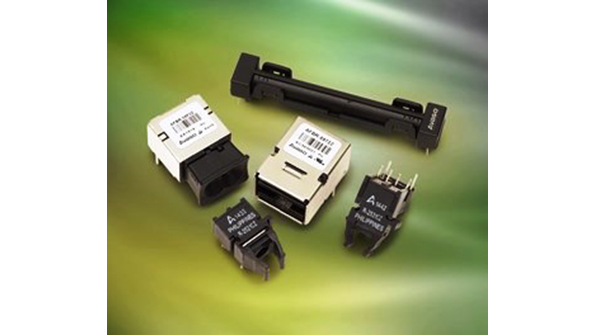

AFBR-3905xxRZ/3950xxRZ - High Voltage Galvanic Insulation Links
Suppresses transient peak voltages up to 50 kV per IEC 60664-1 specification
Available in 1, 2, 3 and 4-inch length
Supports data rates from DC to 5 MBd (AFBR-3905xxRZ)
Supports data rates from DC to 50 MBd (AFBR-3950xxRZ)
Suitable for high voltage on-board insulation in applications such as power distribution, smart grid, and industrial inverters and motor drives
AFBR-59FxZ - Compact 650 nm POF Transceivers with Bare Fiber Locking System
Supports serial data communications from 100 Mbps to 1 Gbps
Innovative bare fiber locking mechanism eliminating the need for connectors
Footprint comparable to RJ-45 connector
AFBR-25x1CZ - Enhanced 650nm Versatile Link Fiber Optic Receivers
Supports data rates from DC to 5 MBd with superior EMI performance
Link distances up to 50 meters using 1.0 mm 0.5NA POF and 500 m using 200µm 0.37NA PCS
Operates in 3.3V or 5V supply with TTL data output
Available in horizontal, vertical and 30°-tilted packages
Samples of the AFBR-3905xxRZ, AFBR-3950xxRZ, AFBR-59FxZ, AFBR-25x1CZ and evaluation boards are now available. Contact local Avago Technologies sales representatives for samples and pricing.
