A dual-mode LED driver from GlacialPower powers LED lighting from 7 W to 20 W. Featuring either constant current or constant voltage operation, the LED driver mode and power output can be easily adjusted to fit a variety of lighting and signage applications. Power input and output lines are connected via robust and easy-to-use clips.

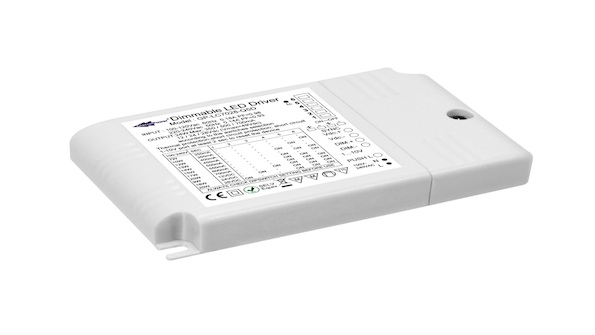

The GP-LC7028 LED driver from is two LED Drivers in one, with easy DIP switch configuration to either constant current or constant voltage mode for enhanced functionality. It can be easily customized to specific LED lighting needs with 8 modes of constant current operation from 250 mA to 700 mA, and constant voltage modes from 12 V, 24 V and 28 V output available. For constant current mode with 1-10 V dimming and push dimming can also easily be enabled with a dimmer.
Safety is number one with the GP-LC7028 LED driver. As a Class 2 power supply, it's fully insulated and is certified to EN6134-1 and EN6134-2-13 safety standards, and has also passed EN55015, EN61000, and EN6154 in internal testing. In addition, Over-Current Protection (OCP) and Short- Circuit Protection (SCP) mean this LED driver will help customers meet all relevant safety standards in their LED lighting and signage applications.
Features
· Universal AC input up to 264 VAC
· Support for Constant Current or Constant Voltage Mode
· Certified to EN6134-1, EN6134-2-13
· Built-in PFC Function
· Fully isolated Class 2 plastic case
· Constant Current mode with 1-10V Dimming and PUSH Dimming
· 3 years warranty
· Protections: Over Current Protection/ Short Circuit Protection
