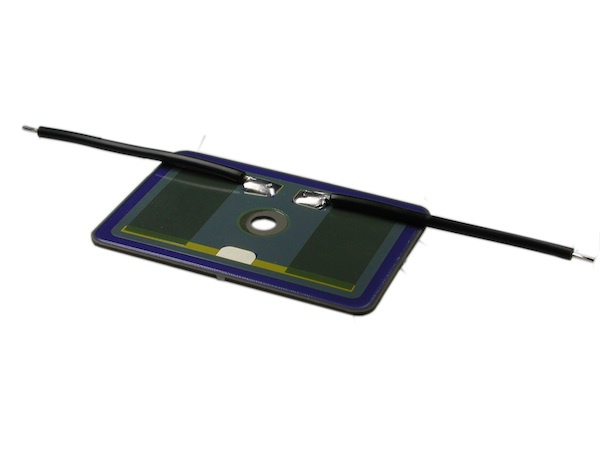

UK-based ARCOL Resistors announce the availability of the TFBR series high power density, low profile thick-film technology high power resistors. Designed for easy assembly and supplied with various terminal styles, the leading-edge thick-film technology low-inductance design lends itself to high frequency operation due to its low inductance characteristics. The added benefit of high instantaneous pulse capacity also makes the TFBR suitable for braking, snubbing and discharge requirements. This product is RoHS compliant.
The TFBR series incorporates an innovative packaging design, providing a high power density in a very low-profile package. The substrate thickness is a tiny 1.0 ± 0.2 mm and the power dissipation (on a heat sink) is 100W for the TFBR100, 300W for the TFBR300 and 900 W for the TFBR900. Ohmic values are available over the range 5 ohms to 680 ohms
The high instantaneous pulse capacity characteristics (Energy = 120J for pulses <1s and cycle 2s) of the TFBR series makes the resistors suitable for braking, snubbing and discharge in traction applications.
The other main characteristics of the ARCOL TFBR series includes a tolerance of ±10% standard and an operating temperature is -55 °C to +200 °C. The TFBR series have an insulation resistance of 1000MΩ. Maximum operating voltage is <1000 V (subject to resulting power). The temperature coefficient is 150 ppm and the TFBR high power resistors are RoHS compliant.
