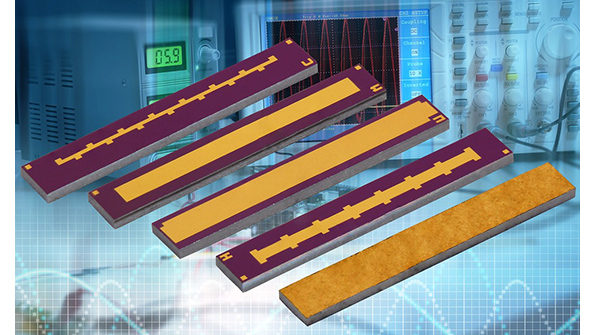

Vishay Intertechnology Inc. introduced a new thin-film bar MOS capacitor designed for use in high-power hybrid assemblies and SiC and GaN applications. The Vishay Dale Resistors Electro-Films BRCP offers high power handling and operating voltage up to 100 V in two compact case sizes measuring 120 mil by 35 mil (case A) and 240 mil by 35 mil (case B), allowing for smaller product designs without sacrificing performance.
With its high working voltage over a capacitance range of 5 pF to 100 pF and its robust MOS construction, the device released today is optimized for LC, RC, or LRC filters; RF choking; and dc blocking and impedance matching. For these applications, the BRCP can accommodate multiple wire bonds, with seven bonds for case A and 15 bonds for case B at their lowest values.
The bar capacitor features low TCC down to ± 50 ppm/°C and absolute tolerance down to ±5%. The device provides excellent load-life stability and operates over a wide temperature range of -55°C to +150°C.
Samples and production quantities of the BRCP bar MOS capacitor are available now, with lead times of 10 weeks for larger orders. Pricing for U.S. delivery starts at $0.50 per piece in high volumes.
