A family of 1700V and 1200 V SiC Junction Transistors from GeneSiC Semiconductor reportedly increase conversion efficiency and reduce the size/weight/volume of power electronics. These devices are targeted for use in a wide variety of applications including server, telecom and networking power supplies, uninterruptable power supplies, solar inverters, industrial motor control systems, and downhole applications.
Junction Transistors offered by GeneSiC exhibit ultra-fast switching capability, a square reverse biased safe operation area (RBSOA), as well as temperature-independent transient energy losses and switching times. These switches are gate-oxide free, normally-off, exhibit positive temperature co-efficient of on-resistance, and are capable of being driven by commercial, commonly available 15 V IGBT gate drivers, unlike other SiC switches. While offering compatibility with SiC JFET drivers, Junction Transistors can be easily paralleled because of their matching transient characteristics.
1700 V Junction Transistor Technical Highlights

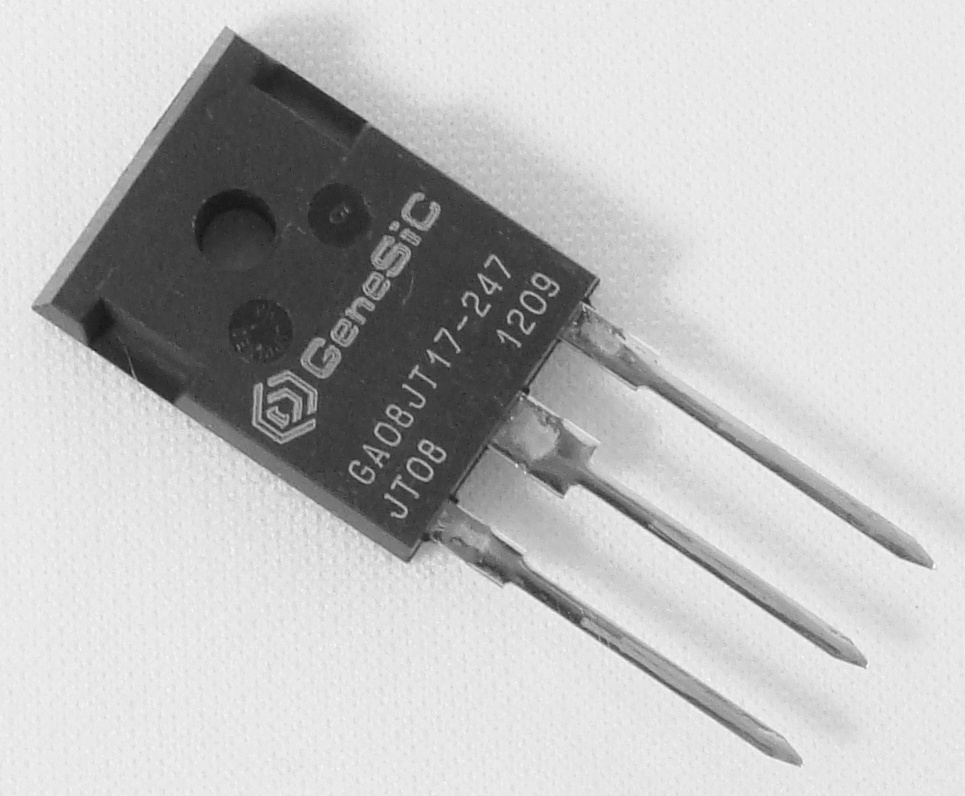

· Three offerings: 110 mΩ (GA16JT17-247), 250 mΩ (GA08JT17-247), and 500 mΩ (GA04JT17-247)
· Tjmax = 175°C
·Turn On/Off; Rise/Fall Times <50 nanoseconds typical.1200 V Junction Transistor Technical Highlights
· Two offerings: 220 mΩ (GA06JT12-247) and 460 mΩ (GA03JT12-247)
· Tjmax = 175°C
·Turn On/Off; Rise/Fall Times <50 nanoseconds typicalAll devices are 100% tested to full voltage/current ratings and housed in Halogen-Free, RoHS compliant TO-247 packages. The devices are immediately available from GeneSiC's Authorized Distributors.
