Calculate Dissipation For MOSFETs In High-Power Supplies

This process starts by first assuming a junction temperature for each MOSFET. The same procedure is implemented for both MOSFETs, individually. Both the MOSFET's power dissipation and allowable ambient temperature are calculated.

The process ends when the allowable ambient temperature is at or slightly above the maximum temperature expected within the enclosure that houses the power supply and the circuitry it powers. Making this calculated ambient temperature as high as possible may seem tempting, but it's not usually a good idea. Doing so would require a more expensive MOSFET, more copper underneath the MOSFET, or moving more air by a larger, faster fan—all of which would be unwarranted.

In a sense, this approach entails working backward. After all, the ambient temperature determines the MOSFET's junction temperature—not the other way around. But the calculations required when starting with an assumed junction temperature are easier to accomplish than when starting by assuming an ambient temperature and working from there.

For both the switching MOSFET and the synchronous rectifier, select a maximum permitted die junction temperature (T_J(HOT)) to use as a starting point for this iterative process. Most MOSFET data sheets only specify a maximum R_DS(ON) at 25°C. But recently, some have offered maximums at 125°C as well. MOSFET R_DS(ON) increases with temperature exhibiting typical temperature coefficients that range from 0.35%/°C to 0.5%/°C (Fig. 2). If in doubt, use the more pessimistic temperature coefficient and the MOSFET's 25°C specification (or its 125°C specification, if available) to calculate an approximate maximum R_DS(ON) at your chosen T_J(HOT):

R_DS(ON)HOT = R_DS(ON)SPEC × \\[1 + 0.005 × (T_J(HOT) - T_SPEC)\\]

where R_DS(ON)SPEC is the MOSFET on-resistance used for the calculation, while T_SPEC is the temperature at which R_DS(ON)SPEC is specified. Use the calculated R_DS(ON)HOT to determine the power dissipation of both the synchronous rectifier and switching MOSFETs, as described below. The paragraphs that discuss calculating the power dissipation of each MOSFET at its assumed die temperature are followed by a description of the additional steps needed to complete this iterative process.

Synchronous Rectifier's Dissipation: For all but the lightest loads, the drain-to-source voltage of the synchronous-rectifier's MOSFET is clamped by the catch diode during turn-on and turn-off. Therefore, the synchronous rectifier incurs no switching losses, making its power dissipation easy to calculate. Only resistive losses need be accounted for.

The worst-case losses occur at the maximum duty factor of the synchronous rectifier, which happens when the input voltage is at its maximum. Through the use of the synchronous rectifier's R_DS(ON)HOT and its duty factor, along with Ohm's Law, you can calculate its approximate power dissipation:

PD_{SYNCHRONOUS RECTIFIER} = \\[I_LOAD² × R_DS(ON)HOT\\] × \\[1 >- (V_OUT/V_IN(MAX))\\]

Switching MOSFET's Dissipation: The switching MOSFET's resistive losses are calculated much like the synchronous rectifier's, using its (different) duty factor and R_DS(ON)HOT:

PD_RESISTIVE = \\[I_LOAD² × R_DS(ON)HOT\\] × (V_OUT/V_IN)

Calculating the switching MOSFET's switching loss is difficult because it depends on many difficult-to-quantify and typically unspecified factors that influence both turn-on and turn-off. Use the rough approximation in the following formula as the first step in evaluating a MOSFET, and verify performance later on the lab bench:

PD_SWITCHING = (C_RSS × V_IN² × f_SW × I_LOAD)/I_GATE

where C_RSS is the MOSFET's reverse-transfer capacitance (a data-sheet parameter), f_SW is the switching frequency, and I_GATE is the MOSFET gate-driver's sink and source current at the MOSFET's turn-on threshold (the V_GS of the gate charge curve's flat portion).

Once you've narrowed the choice to a specific generation of MOSFETs based on cost (the cost of a MOSFET is very much a function of the specific generation to which it be-longs), the device within that generation that will minimize power dissipation is the one with equal resistive and switching losses. Using a smaller (faster) device increases resistive losses more than it decreases switching losses, and a larger (low-R_DS(ON)) device increases switching losses more than it decreases resistive losses.

If V_IN varies, you must calculate the switching MOSFET's power dissipation at both V_IN(MAX) and V_IN(MIN). The MOSFET's worst-case power dissipation will occur at the minimum or maximum input-voltage level. The dissipation is the sum of two functions: the resistive dissipation, which is highest at V_IN(MIN) (higher duty factor), and the switching dissipation, which is highest at V_IN(MAX) (because of the V_IN² term). An optimal selection has roughly equal dissipations at the V_IN extremes, balancing resistive and switching dissipations across the V_IN range.

If the dissipation at V_IN(MIN) is significantly higher, resistive losses will dominate. In that case, consider a larger switching MOSFET, or more than one in parallel, to lower R_DS(ON). But if the losses at V_IN(MAX) are significantly higher, consider decreasing the size of the switching MOSFET (or removing a MOSFET if multiple devices are used) to allow it to switch faster.

If the resistive and switching losses balance but are still too high, there are several ways to proceed:

• Change the problem definition. For example, redefine the input voltage range.
• Change the switching frequency, which lowers switching losses and possibly allows a larger, lower-R_DS(ON) switching MOSFET.
• Increase the gate-driver current, lowering switching losses. The MOSFET's own internal gate resistance, which ultimately limits the gate-driver current, places a practical limit on this approach.
• Use an improved MOSFET technology that might simultaneously switch faster and have lower R_DS(ON) and lower gate resistance.

Fine-tuning the MOSFET's size beyond a certain point may not be possible due to a limited number of devices to choose from. The bottom line is that the MOSFET's worst-case power must be dissipated.

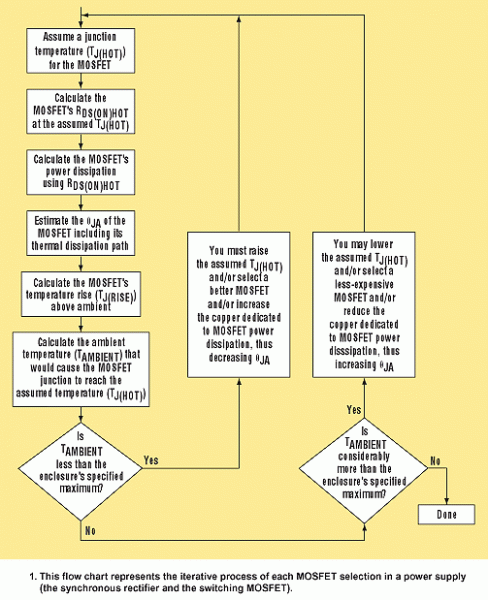

Thermal Resistance: Refer to Figure 1 again for the next step in the iterative process used to determine whether or not you chose the right MOSFETs for both the synchronous rectifier and the switching MOSFET. That step is the calculation of the temperature of the ambient air surrounding each MOSFET that would cause the assumed MOSFET junction temperature to be reached. To do this, first determine the junction-to-ambient thermal resistance (T_JA) of each MOSFET.

If multiple MOSFETs are used in parallel, you can calculate their combined thermal resistance in the same way as the equivalent resistance of two or more paralleled resistors. Thermal resistance can be difficult to estimate. While it's relatively easy to measure the T_JA of a single device on a simple pc board, it can be hard to predict thermal performance in an actual power supply within a system, where many sources of heat compete for limited dissipation paths.

Start with the MOSFET's T_JA specification. For single-die SO-8 MOSFET packages,T_JA is usually near 62°C/W. For other packages, with thermal tabs or exposed heat slugs, it may range between 40°C/W and 50°C/W (see the table). To calculate the MOSFET's die temperature rise above ambient:

T_J(RISE) = PD_{DEVICE TOTAL} &215; T_JA

Next, calculate what ambient temperature would cause the die to reach the assumed T_J(HOT):

T_AMBIENT = T_J(HOT) - T_J(RISE)

If the calculated T_AMBIENT is lower than the enclosure's maximum specified ambient temperature (meaning that the enclosure's maximum specified ambient temperature would cause the MOSFET's assumed T_J(HOT) to be exceeded), you must do any or all of the following:

• Raise the assumed T_J(HOT), but not above the data sheet maximum.
• Lower the MOSFET power dissipation by choosing a more suitable MOSFET.
• Or, decrease T_JA by increasing the air flow or the amount of copper around the MOSFET.

Then recalculate. Employing a spreadsheet simplifies the multiple iterations typically required to settle on an acceptable design.

On the other hand, if the calculated T_AMBIENT is higher than the enclosure's maximum specified ambient temperature by a fair amount, any or all of the following optional steps can be taken:

• Lower the assumed T_J(HOT).
• Reduce the copper dedicated to the MOSFET's power dissipation.
• Or, use a less expensive MOSFET.

These steps are optional because in this case, the MOSFET won't be damaged by excessive temperature. However, these steps can reduce board area and cost, as long as the calculated T_AMBIENT remains higher than the enclosure's maximum temperature by some margin.

The biggest source of inaccuracy in this procedure is T_JA. Carefully read any datasheet notes associated with a T_JA specification. Typical specifications assume a device mounted on 1 in.² of 2-ounce copper. The copper performs much of the power dissipation, and different amounts of copper change T_JA dramatically.

For example, the T_JA of a D-Pak might be 50°C/W with 1 in.² of copper. But with copper underlying just the package footprint, the T_JA more than doubles (see the table again). With multiple MOSFETs in parallel, the T_JA mostly depends on the copper area to which they're mounted. The equivalent T_JA for two devices can be half that of one device, but only if the copper area also is doubled. That is, adding a parallel MOSFET without also additional copper halves R_DS(ON) but changes T_JA much less.

Lastly, T_JA specifications assume that no other devices contribute heat to the copper dissipation area. At high currents, every component in the power path, even pc-board copper, generates heat. To avoid overheating the MOSFETs, carefully estimate the T_JA that your physical situation can realistically achieve. Study the selected MOSFET's available thermal information; investigate whether or not space is available for additional copper, heatsinks, and other devices; determine if increasing the air flow is feasible; see if other devices contribute significant heat to the assumed dissipation path; and estimate excess heating or cooling from nearby components and spaces.

A Design Example: The CPU core supply shown in Figure 3 delivers 1.3 V at 40 A. Two identical 20-A power stages operating at 300 kHz supply the 40-A output current. The MAX1718 master controller drives one stage, while the MAX1897 slave controller drives the other. This supply's input range spans 8 to 20 V, with the specified maximum ambient temperature of the enclosure at 60°C.

The synchronous rectifier comprises two IRF7822 MOSFETs in parallel, with a combined maximum R_DS(ON) of 3.25 mO at room temperature, and about 4.7 mO at 115°C, the assumed T_J(HOT). With a maximum duty factor of 94%, a 20-A load current, and the 4.7-mO maximum R_DS(ON), these paralleled MOSFETs dissipate about 1.8 W. Supplied with 2 in.² of copper to dissipate that power, the overall T_JA should be about 31°C/W. The temperature rise of the combined MOSFETs will be about 55°C, so this design will work with an ambient temperature of up to about 60°C.

Two IRF7811W MOSFETs in parallel, with a combined maximum R_DS(ON) of 6 mO at room temperature, and about 8.7 mO at 115°C (the assumed T_J(HOT)), make up the switching MOSFET. The combined C_RSS is 240 pF. The MAX1718's (and MAX1897's) 1-O gate drivers deliver about 2 A. At V_IN = 8 V, the resistive losses are 0.57 W, and the switching losses are approximately 0.05 W. At 20 V, the resistive losses are 0.23 W, and the switching losses are approximately 0.29 W. Total losses at each operating point roughly balance, and the worst-case total equals 0.61 W at the minimum V_IN.

Because this level of power dissipation isn't high, we can provide this pair of MOSFETs with under 0.5 in.² of copper area, achieving an overall T_JA of about 55°C/W. This still enables operation up to an ambient temperature of 80°C with a 35°C temperature rise.

The copper areas in this example are required for the MOSFETs alone. If other devices dissipate heat into those areas, more copper area will likely be required. If space isn't available for this additional copper, reduce the total power dissipation, spread the heat to areas of low dissipation, or use active means to remove heat.

Thermal management is one of the most difficult areas of high-power portable design. That difficulty makes the iterative process outlined above necessary. Although this process should get the board designer close to the final design, lab work must ultimately determine whether the design process was sufficiently accurate. Calculating the thermal properties of the MOSFETs and ensuring their dissipation paths while checking those calculations in the lab helps ensure a robust thermal design.
