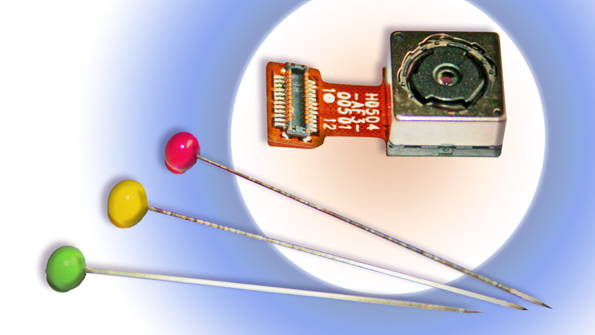

The Suyin Optronics 8-Mpixel CM 8013 AF05 OV01 camera module suits use where space is tight, measuring 8.5 by 8.5 by 5.91 mm, such as industrial PCs, mobile devices, and automotive and industrial electronics. Integrated autofocus capabilities, combined with a high-performance lens consisting of five plastic elements, ensure outstanding image quality and provide a display that is always sharp, regardless of the distance setting used. The image sensor, an OV88225CMOS in plastic leaded chip carrier (PLCC) housing, has an effective resolution of 3296 (H) by 2460 (V) pixels. Using the standard serial camera control bus (SCCB), the images are read out as 10-bit RAW RGB (MIPI) files (full-frame, sub-sampled, windowed). Depending on the resolution, the maximum image transmission rate is 24 fps (8 Mpixels), 30 fps (EIS1080p), 60 fps (EIS720p), and so on. All required image editing functions such as the exposure setting, white balance, and masking of defective pixels can be programmed via the SCCB interface. Black level calibration is performed automatically (ABLC). The module also offers integrated 256-byte one-time programmable (OTP) memory for storing serial numbers and similar details, a chip-integrated phase-locked loop (PLL), and a built-in 1.5-V voltage controller for the core supply.
