Maxon motor expands its offering of miniaturized controllers with its latest OEM plug-in module. This high-performance 4-quadrant PWM servo motor controller is designed to command permanent-magnet-activated brushed and brushless DC motors with Hall sensors up to 48 Watt continuous output and 144 Watt peak output. Its features include: high usability, exceptional performance and power density in servo motor controller technology. It is unprecedented in functionality, protection, and performance.
In addition, the entire Maxon ESCON servo controller line now offers new functionality: an RC servo signal evaluation for speed or current set values, current limiter and offset, or the option to predefine analog speed ramps.

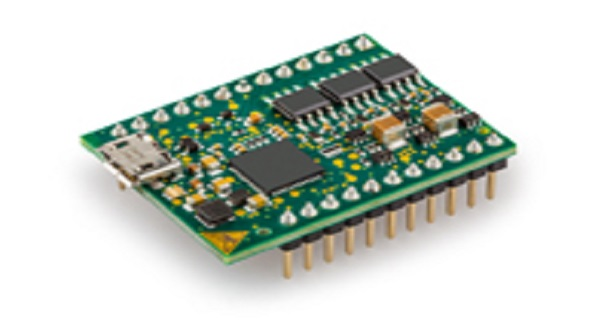

The innovative OEM plug-in module features excellent controller characteristics. The drift-free yet extremely dynamic speed behavior enables speeds up to 150,000 rpm. It provides extensive functionality with free configurable digital and analog inputs/outputs and can be operated in various modes, such as speed controller (closed loop), speed controller (open loop), and current controller. A perfect match for maxon's motor range, the miniaturized ESCON Module 24/2 suits even the highest-demanding applications and most dynamic drive solutions. Plus, it easily integrates into complex applications with little effort.
A detailed Motherboard Design Guide is available for integration to OEM PCBs and a suitable motherboard makes initial commissioning a simple task. This allows the OEM to focus on the development of their own device and simply rely on Maxon's expertise for the motor control part that is provided in the ESCON module.
The compact servo controller is controlled by an analog set value. It can be specified by means of analog volt-age, by external potentiometer, by defined value, by means of PWM signal, or with RC servo signal with variable duty cycle. Other key features include the ability to enable or disable the power stage depending on the direction of rotation as well as acceleration and deceleration by employment of defined speed ramps. The speed can be controlled by means of digital incremental encoder (2 channel, with/without Line Driver), DC tacho, or Hall sensors.
