What are the Fundamental Differences Between AC and DC Power Relays?

What you'll learn:

Introduction to AC and DC Power Relays
The Importance of Contacts in AC and DC Relays
Design Considerations for AC and DC Power Relays
Differences in Switching Capacities and Power Ratings

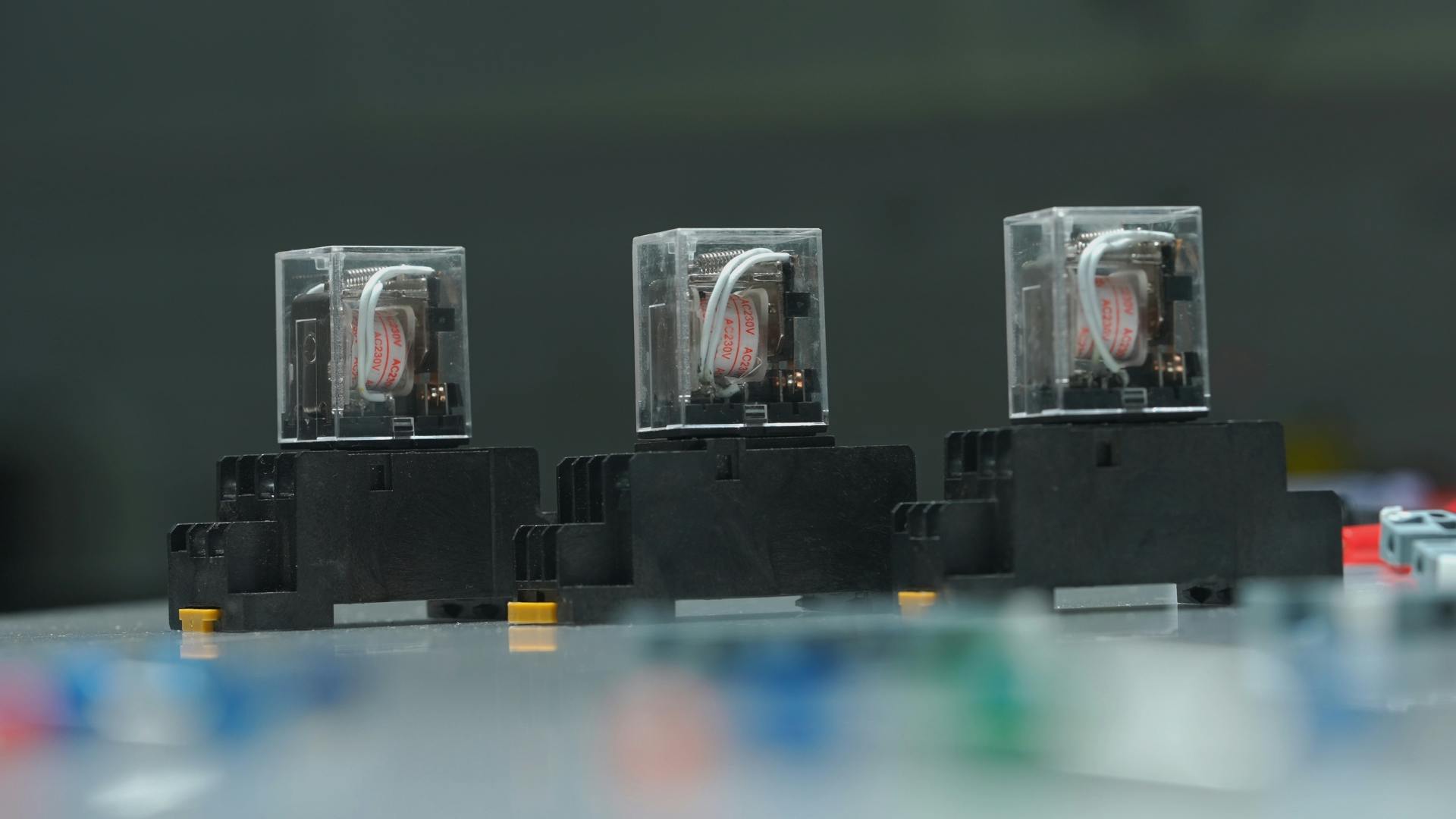

Relays are vital components in modern electrical and electronic systems, serving as electrically operated switches. They’re widely used to control high-power circuits with low-power control signals. However, these devices must be designed to work with different load conditions, either alternating current (AC) or direct current (DC).

Electronics and system engineers need to know the key differences between AC and DC power relays. How do these devices work, how do you choose the right component, and how do you integrate it into a system?

Go With the Current Flow: Introduction to AC and DC Power Relays

The most fundamental difference between AC and DC power relays lies in the type of electrical current that they’re designed to switch.

AC power relays: These relays are designed to switch alternating current, reversing direction periodically. AC current naturally alternates, which causes the current to flow in both directions, going from positive to negative and vice versa. This characteristic is important because it helps ensure that arcing between the contacts inside the relay will be effectively interrupted.
DC power relays: In contrast, direct current flows in only one direction, making it much more difficult to interrupt arcing when the circuit is opened or closed. This requires additional design measures to ensure complete arc interruption. DC power relays are specifically designed to handle these issues and ensure reliable switching in DC systems, such as EV charging stations and battery energy storage systems (BESS).

Make or Break: The Importance of Contacts in AC and DC Relays

One of the most important aspects of a relay is its ability to switch electrical circuits by making or breaking contact. Current handling influences the way in which contacts behave in AC and DC power relays.

AC power relays: AC power relays take advantage of the fact that alternating current passes through zero during each cycle. This natural zero-crossing point (where the current is momentarily interrupted) helps extinguish arcs that can form when the contacts open or close. As a result, the likelihood of damaging arcs in AC circuits is much lower compared to DC circuits. AC power relays, therefore, generally require less robust arc-suppression mechanisms.
DC power relays: DC circuits don’t have a natural zero-crossing point because the current flows in a continuous direction. When a DC circuit is opened or closed, the current flow remains constant, which can cause the relay contacts to arc. This constant flow of current creates more heat at the contacts, leading to faster wear and tear.

Design Considerations for AC and DC Power Relays

The design of AC and DC power relays differs due to the fundamental characteristics of the two types of current. These design differences play a significant role in their operation and application.

AC power relay design: AC relays often use standard contact materials such as silver or gold for reliability and cost-effectiveness, as they’re less prone to issues like arcing.
DC power relay design: The contacts in DC relays are designed to handle higher temperatures and wear caused by arcing. In these cases, materials like silver or tungsten are often used. In DC power relays, coatings are typically applied to protect against moisture, chemicals, and other potential causes of corrosion, enhancing reliability and extending the component’s lifespan.

The Differences in Switching Capacities and Power Ratings

AC and DC power relays also differ in terms of switching capacities and power ratings.

AC power relays: AC relays are typically designed to handle high-voltage and high-current AC loads. The design of the relay accounts for the fact that AC currents naturally cycle on and off, helping reduce design measures that ensures any arcing will be interrupted.
DC power relays: DC relays are designed to handle specific voltage and current ratings, but they usually have lower power ratings compared to their AC counterparts. This is because of the difficulty in interrupting arcing when switching DC loads. The need for enhanced arc suppression and other safety features may limit the maximum current and voltage rating of DC power relays.

Overall, AC and DC relays serve similar functions: safely and efficiently switching high-power electrical circuits. But they can present significant differences in switching design. In general, AC power relays are simpler in design due to the distinct characteristics of AC, while DC relays must be engineered to handle the unique challenges posed by DC, such as arc suppression and higher wear on contacts. Understanding the differences between them is critical to selecting the right power relay for a specific application.
