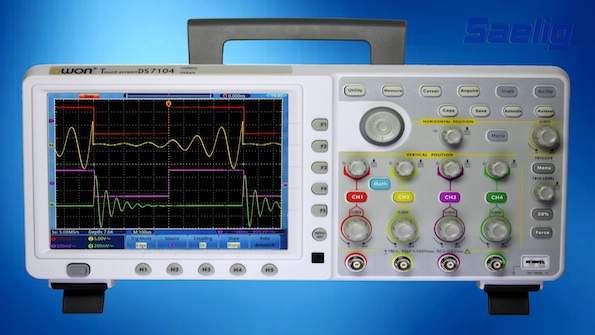

The Owon TDS7102 from Saelig Company Inc. is a 100 MHz four-channel benchtop scope, with touch-screen capabilities that make instrument setting, operation, and adjustment faster and more intuitive. With 1 GSa/s signal capturing on all four channels simultaneously, a huge 7.6MSa record length, and 50,000 wfmSa/s capture rate, zooming in and finding fast, intermittent pulses is now much quicker and simpler. Controlling waveform position, display, and triggering is much faster with touch control, but buttons are also provided to offer conventional operation.
The TDS7102 incorporates deep memory, external, video-capable trigger, auto-measurements, auto-scaling, large 8 in. full color 800 x 600 pixel LCD display, XY mode, auto-set, averaging, math functions, USB output, waveform storage, pass/fail output and a 3-year warranty. Even FFT functionality is included for instant display of the frequency spectrum of the signal under test. Another feature is the ability to switch the input impedance from 1MW to 50W - a built-in termination to eliminate signal reflections.
The Autoscale function can automatically adjust the vertical gain, or the horizontal time base, or both together. This is useful for circuit probing - as the probe is moved from point to point on a circuit board, the display auto-adjusts for best trace presentation. It functions in the same manner as 'AutoSet', but instead of being a one-time function, it's active until turned off, keeping "hands-free." The TDS7102 can automatically measure and display frequency and peak-peak/rms/mean values, but cursors can also be moved to make individual readings. A built-in self-calibration facility improves measurement accuracy. Video signal monitoring is also facilitated with triggering on NTSC/PAL/SECAM line or field waveforms. TDS7102 features include: manual cursor measurements, up to 19 automatic measurements (including frequency), high-speed screen update, storage for up to four reference waveforms and set-up parameters, convenient USB serial interface with PC software, 400bV (DC+AC peak) maximum input, and multi-language capabilities.
With interfaces such as USB host and device, VGA for external display or projector, and Ethernet LAN for remote operation, the TDS7102 will find application in a wide range of environments such as electronic circuit debug and circuit testing, design and manufacture, education and training, and automobile maintenance and testing.
