PWM Controller Tailored for AI Server and Graphics Cards Based on Blackwell GPUs

Jan. 6, 2025

The four-phase PWM controller pairing with Alpha and Omega’s benchmark DrMOS exhibits the best system efficiency for NVIDIA’s Blackwell GPU platforms.

Lee Goldberg

Related To: Electronic Design

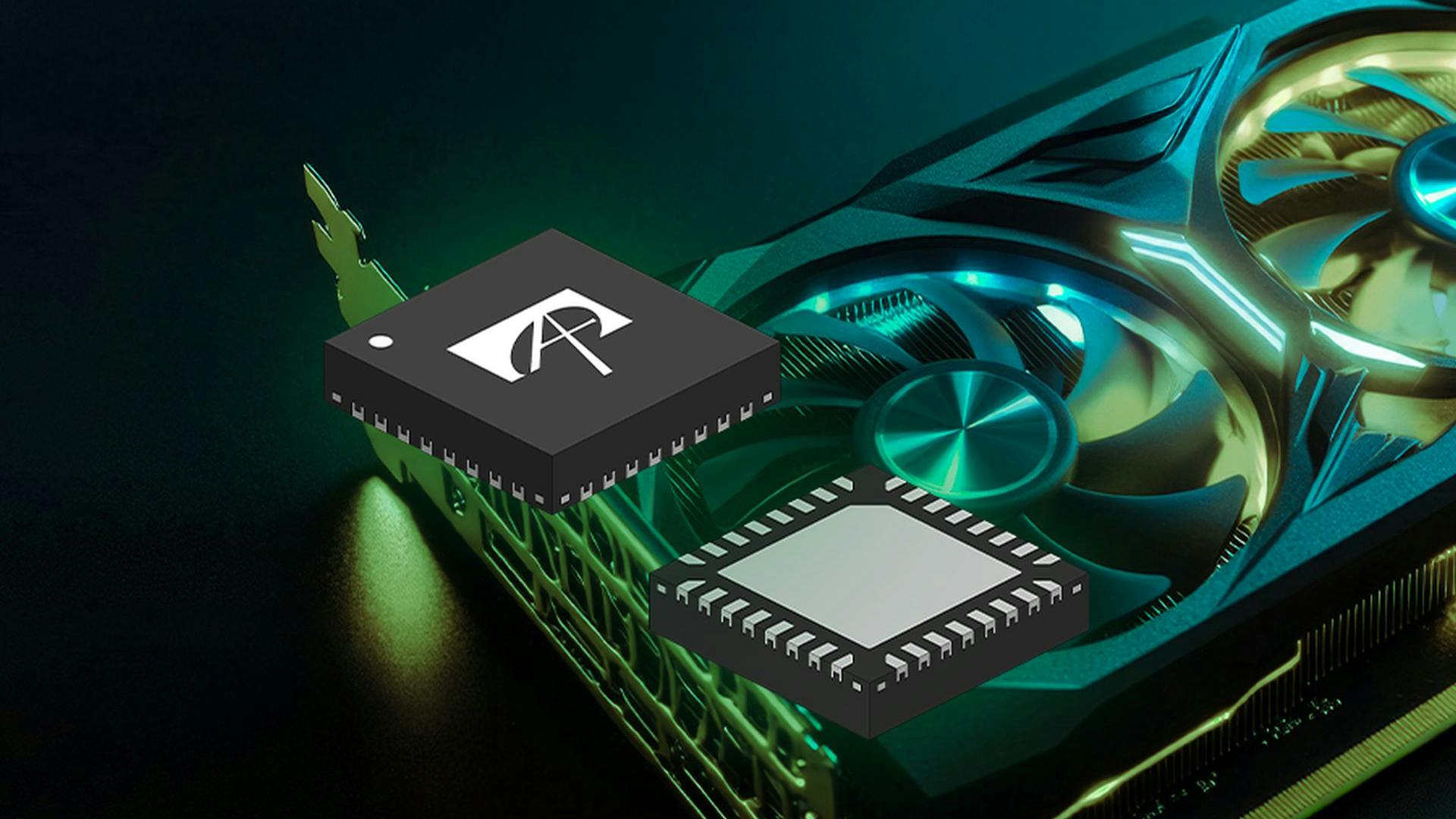

According to Alpha and Omega Semiconductor (AOS), its AOZ73004CQI is the first four-phase controller for Blackwell GPUs. The controller’s advanced design has received full OpenVReg (open voltage regulator) OVR4-22 compliance.

The AOZ73004CQ controller’s Blackwell-optimized feature set includes a cycle-by-cycle current limit that meets the platform’s overcurrent-limit (OCL) specification, which helps safely throttle GPU power for maximized performance. It also includes an external reference input and PWMVID dynamic output voltage control, also compliant with the OVR4-22 specification.

The pulse-width-modulation (PWM) control outputs use a combination of intelligent algorithms and high sample rates to minimize ripple effects, enabling the device to triple the PWMVID slew rate up to 30 mV/µs (required for most next-generation GPUs). In addition, the AOZ73004CQI’s deep-off and shallow-off power states help it minimize power consumption, providing a significant advantage in battery-powered applications.

The AOZ73004CQI isn’t limited to being paired with four DrMOS as a standard application. Thanks to the precise turn-on time of AOS’s proprietary DrMOS technology, the AOZ73004CQI can enable a single PWM output to drive two or three DrMOS devices. This enables designers to create a cost-effective, high-power, multiphase power solution capable of supporting up to 12 power stages.

Similarly, the controller can pair with DrMOS power stages such as AOZ5316NQI/AOZ5317NQI/AOZ5318NQI, which are well-suited to laptop GPUs powered by a 20-V input.

Additional features include:

Differential remote sensing to achieve 1% regulated V_OUT accuracy.
Proprietary, high-performance AOS Advanced Transient Modulator (A²TM) control scheme.
Seamless CCM to DCM control to maximize efficiency.
Supports DCR or RON_LG sensing current balance.
Automatic phase shedding (APS) with user-settable threshold.
Acoustic noise suppression.

Housed in a QFN 4x4-32L package, the AOZ73004CQI is immediately available in production quantities with a lead time of 12 to 16 weeks. Pricing for AOZ73004CQI starts at $1.20 in 1,000-piece quantities.
