Two Universities Unveil V2G-Capable OBC Designs Leveraging WBG Tech

Dec. 18, 2024

Industry and academia team to create designs for compact, cost-effective, V2G-capable onboard chargers for EVs.

What you’ll learn:

Researchers from two universities released innovative designs for onboard chargers that support vehicle-to-grid functionality
Developed in partnership with Infineon, they use the unique properties of SiC and GaN devices to create rugged designs that achieve power densities of over 3 kW/l.

Infineon Technologies collaborated with Silicon Austria Labs (SAL) and the Power Electronic Systems Laboratory at ETH Zurich to develop prototypes of vehicle-to-grid (V2G)-capable onboard chargers (OBCs). They integrate wide-bandgap (WBG) semiconductors to achieve their high efficiency and power density.

Silicon Austria Labs’s Tiny Box 1 prototype uses Infineon’s silicon-carbide (SiC) power devices to achieve the team’s goal of reducing the OBC’s weight, bill-of-materials count, and space while increasing power density by a factor of 4 over conventional designs. The result was a pair of two demonstrator variants:

A single-phase 7-kW OBC that was optimized for automotive applications. It uses a simple liquid-cooling system to achieve a power density of 3.1 kW/l (with housing) while delivering over 97% efficiency.
A three-phase 11-kW charger that was optimized for efficiency with passive/air cooling at voltage for electric forklift applications.

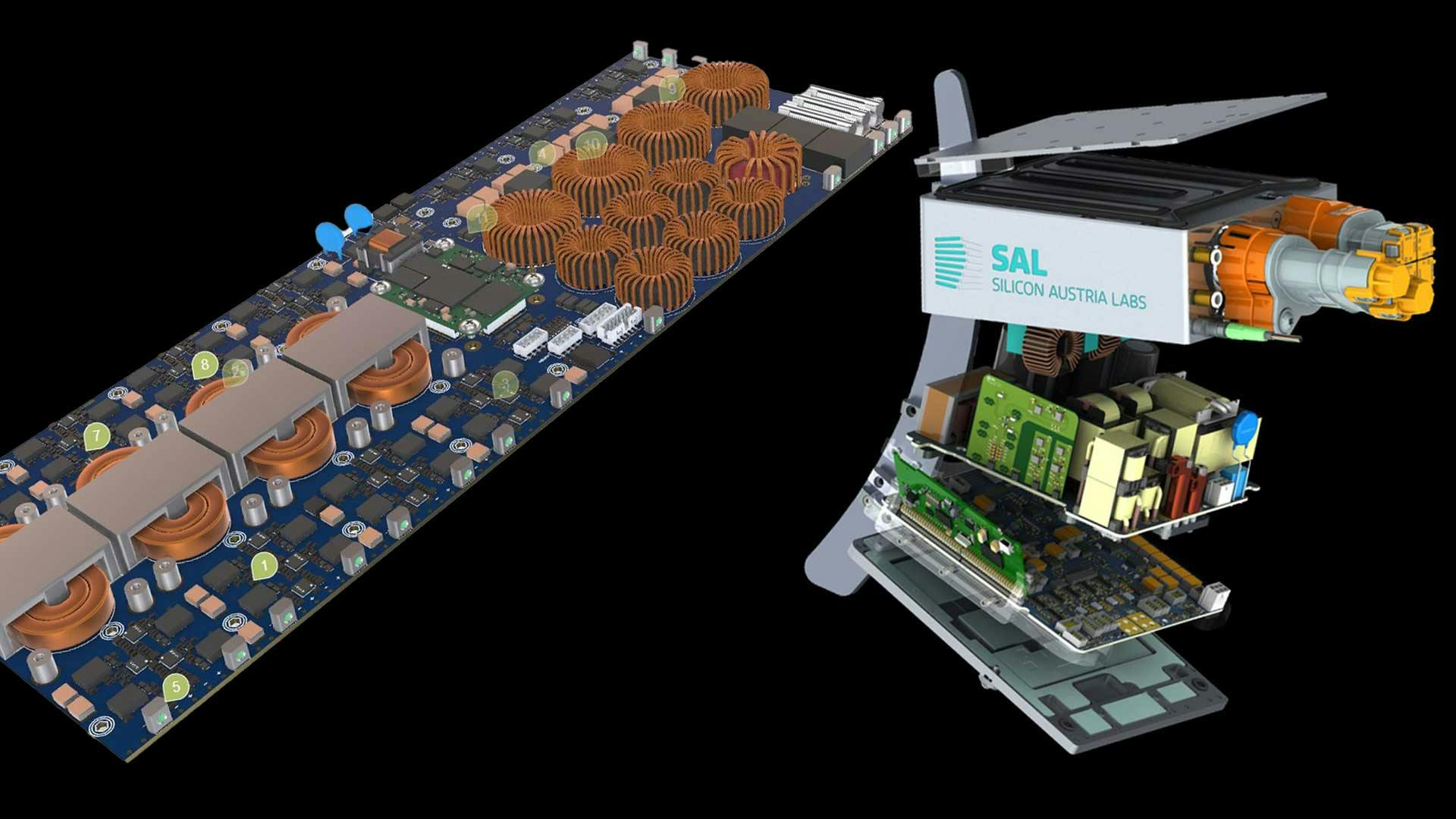

Silicon Austria Labs’s Tiny Box 1 prototype for V2G onboard chargers.

Additional information can be found within Infineon’s website, or SAL’s project homepage.

The Power Electronic Systems Laboratory at ETH Zurich developed a 10-kW bidirectional EV charger based on Infineon’s gallium-nitride (GaN) devices for its Vienna Rectifier PFC front-end and four cascaded dual active bridges (DABs) that serve as isolated DC-DC converter stages. Operating at switching frequencies of up to 550 kHz, the converter utilizes novel modulation schemes to reach a peak efficiency of 96% and a wide EV battery voltage range from 250 to 1,000 V_DC,out.

A 10-kW bidirectional EV charger developed by the Power Electronic Systems Laboratory at ETH Zurich incorporating Infineon GaN devices.

Additional information about this design is available on the project page on Infineon’s website. A high-resolution 3D model of the design can be viewed by clicking this link.
