Full-Bridge DC Motor Driver with Real-Time Diagnostics Targets Automotive Apps

Jan. 30, 2025

An intelligent full-bridge drive with integrated protections and a dedicated output-status pin simplifies designs of low/mid-power DC-motor systems.

Lee Goldberg

Related To: Electronic Design

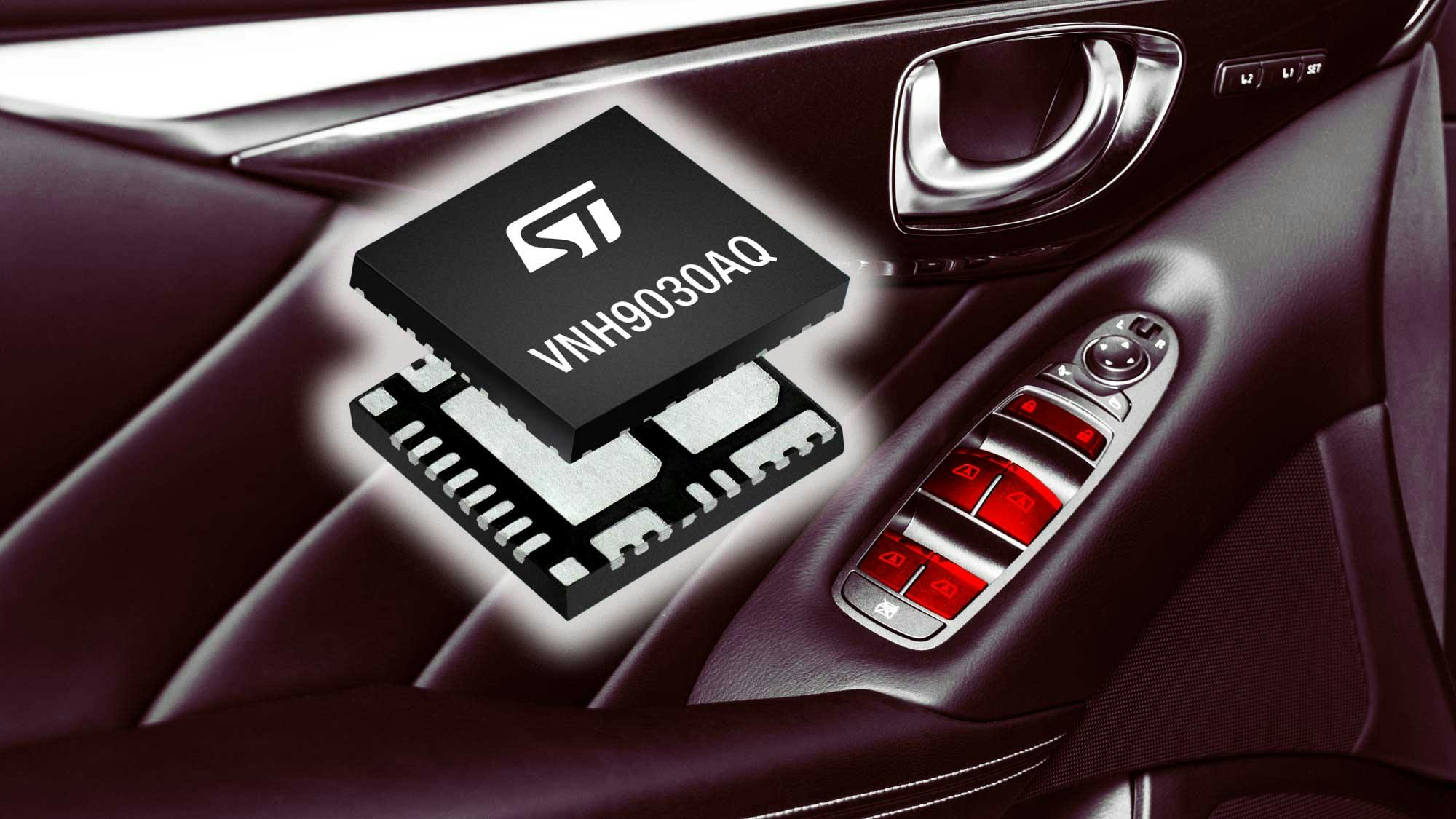

The VNH9030AQ integrated full-bridge DC motor driver from STMicroelectronics addresses a wide range of automotive applications, including functional-safety systems. In addition to its driver functionality, the IC reduces bill-of-materials (BOM) count and cost by integrating advanced diagnostic circuitry and a dedicated pin for real-time output status. These features, plus the low R_DS(on) (30 mΩ per leg) suit it for mid- and low-power DC-motor-driven applications such as door-control modules, washer pumps, powered lift gates, powered trunks, and seat adjusters.

The motor driver integrates the high- and low-side MOSFETs with gate drivers, diagnostics, and protection against overvoltage transients, undervoltage, short-circuit conditions, and cross-conduction. Its integrated non-dissipative, current-sense circuitry monitors the current flowing through the device to distinguish each motor phase.

Flexibility to configure the MOSFETs either in parallel or in series allows for its use in systems involving multiple motors or to meet other specific requirements.

Other devices in the series share a common pinout. They’re housed in a 6- × 6-mm thermally enhanced, triple-pad QFN package designed for optimal underside cooling.

The VNH9030AQ is in production now and available from $2.48 for orders of 1,000 pieces.
