Switcher Supply ICs Boost Power While Cutting Cost and Footprint

April 14, 2025

Power Integrations’s latest incarnation of its TinySwitch IC family enables development of compact, economical supplies up to 200 W that don’t compromise on performance or features.

Lee Goldberg

Related To:

Electronic Design

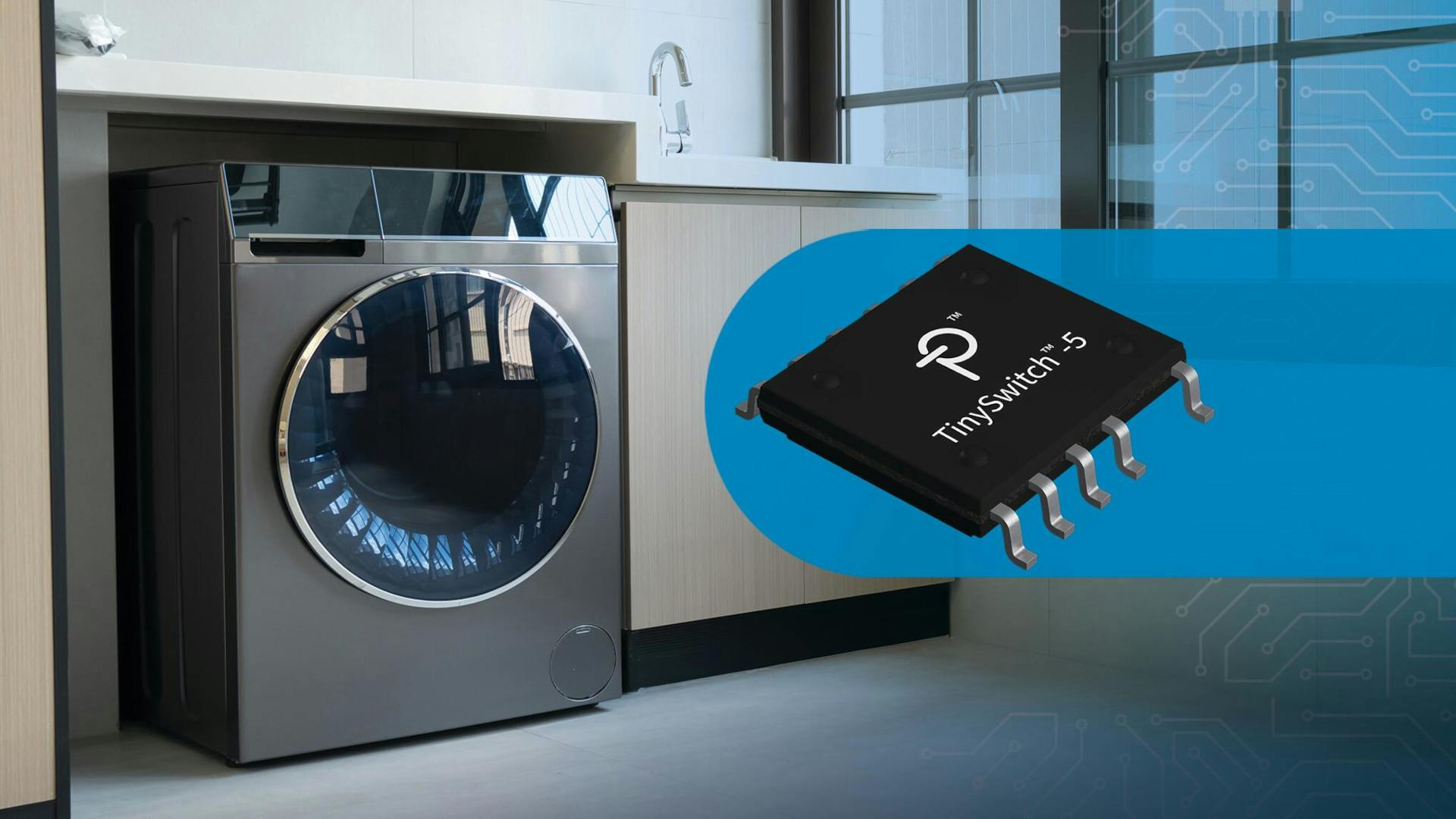

The recently released TinySwitch-5 series of switching ICs from Power Integrations leverages an application-optimized architecture to offer an economical, more compact solution for applications requiring up to 200 W. And they don’t compromise on performance.

Although the new IC family’s architecture omits PI’s proprietary (and quite excellent) FluxLink isolation technology in favor of a more basic diode rectification and optocoupler feedback circuit, it still manages to achieve up to 92% efficiency and a rich set of protection features. Equally important, the devices can serve as drop-in replacements in many designs using any earlier series of switches.

The controller features an advanced control engine that squeezes the most out of “vanilla” silicon MOSFET devices by managing both off time and switch current limit to keep the switch operating in its peak range and power delivery to maximize efficiency, even at light loads. As a result, supplies based on the TinySwitch-5 are able to meet the light-load power-consumption limit of 300 mW, set by the2009/125/EC Directive, while still delivering up to 220 mW of output power for display and other standby functions.

The TinySwitch-5 ICs’ enhanced thermal packages allow them to deliver up to 75 W without a heatsink.

Pricing for TinySwitch-5 starts at $0.35 for 10,000-unit quantities. Reference designs are available for a 12-W single-output power supply (DER-1017); a 26.5-W dual-output power supply with excellent standby efficiency (RDR-1016); a 36-W single-output power supply with high efficiency at light load (DER-1040); and a 1,200-W power supply with 92% efficiency at 230 V AC (DER-1027).
